Key Features & Advantages
1. Unmatched High-Efficiency Performance
This plant is engineered for Optimized Energy Efficiency and Process Performance.It utilizes an advanced biological treatment process,often enhanced with precise aeration control and optimized reactor hydraulics,to achieve exceptional removal rates of BOD,COD,and nutrients.This High-Efficiency Community Sewage Treatment translates into significantly lower operational costs,reduced power consumption,and minimal sludge production,ensuring a cost-effective lifecycle for the community.
2. Simplified Above-Ground Installation & Maintenance

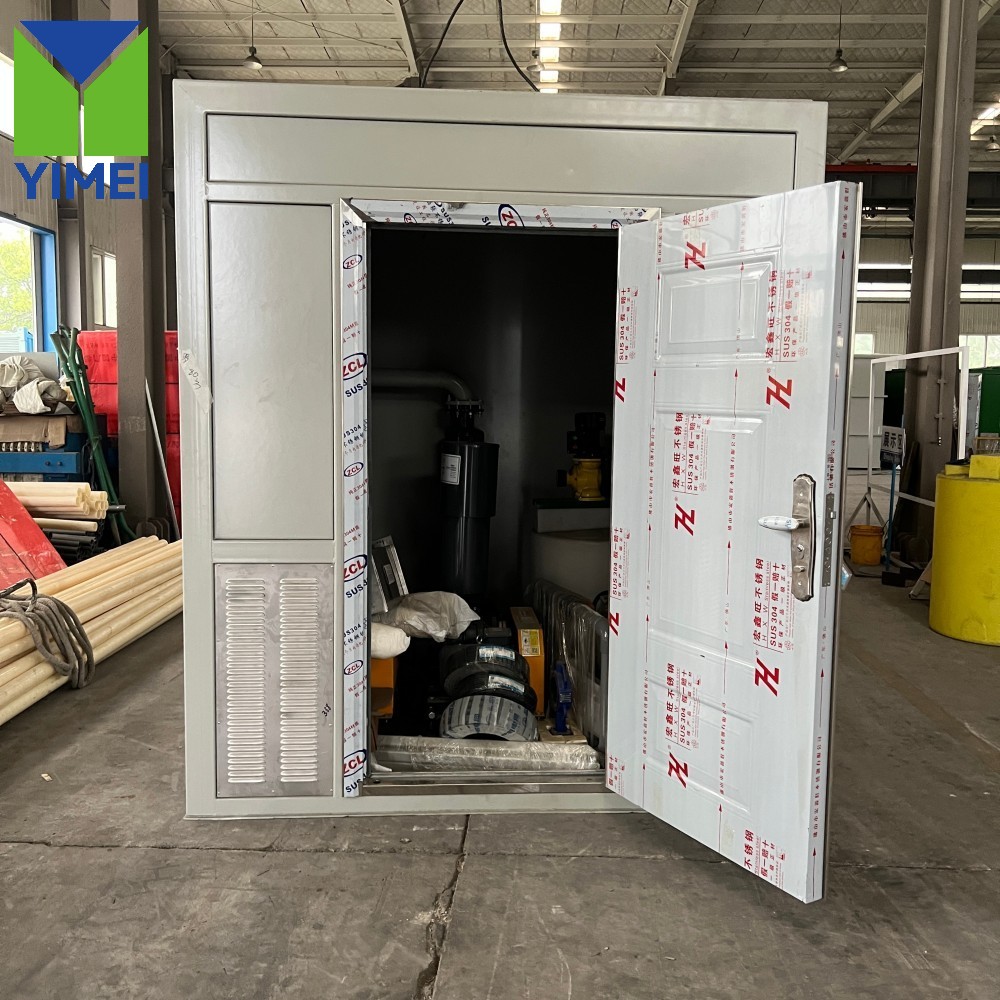

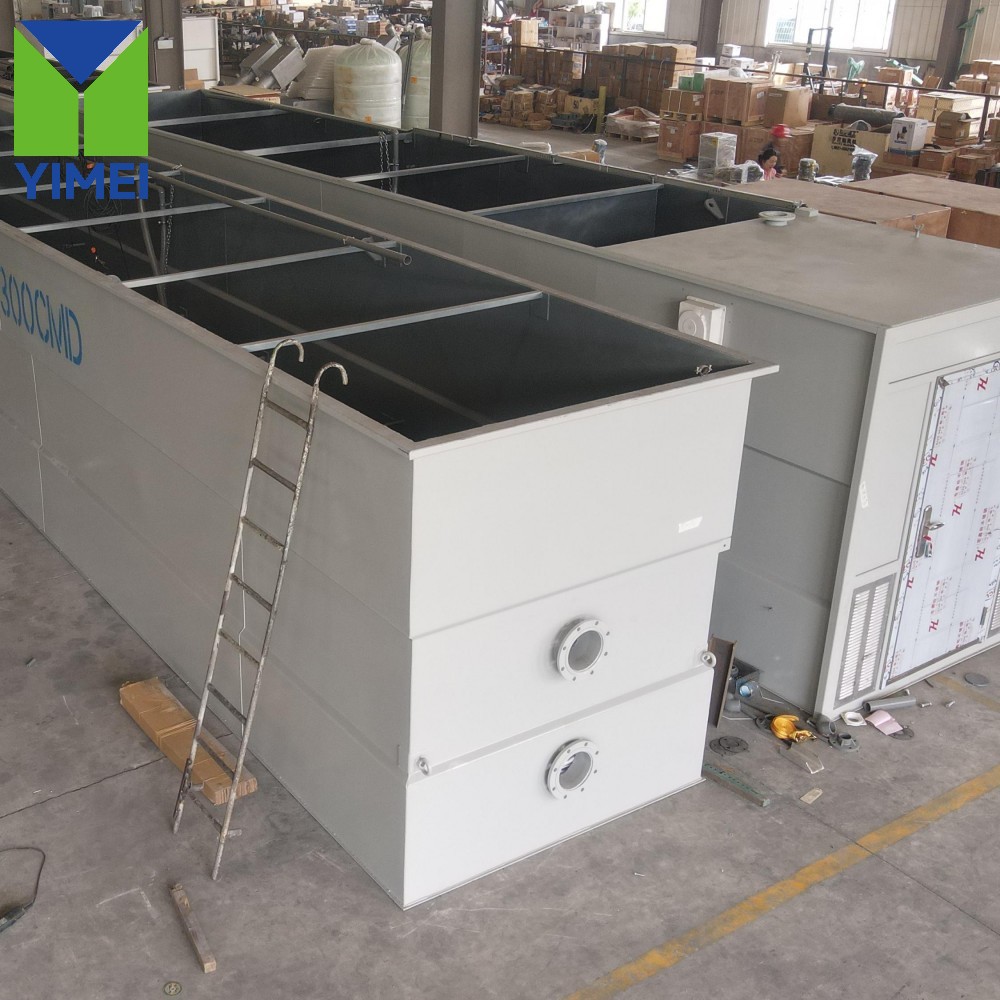

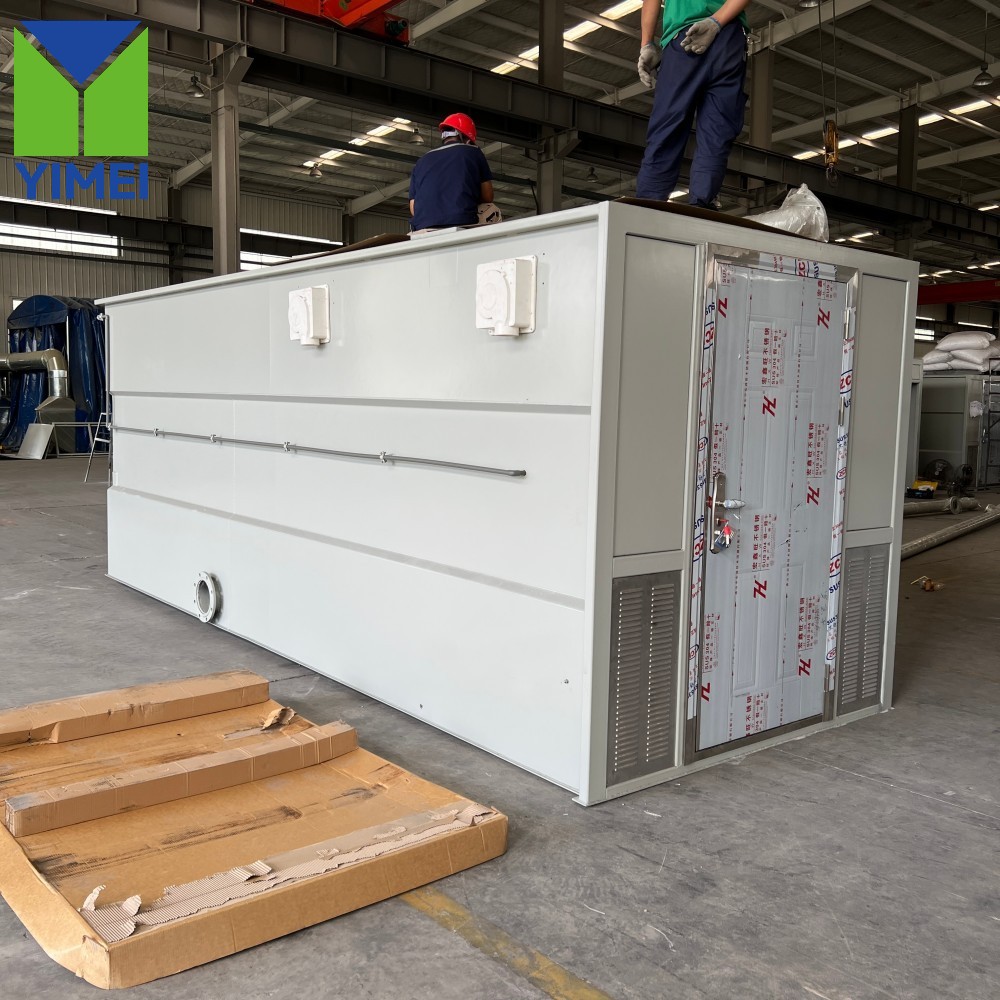

The Above-Ground Packaged Plant design revolutionizes project execution. All major components are integrated into easily transportable modules that are installed directly on a prepared ground-level foundation. This approach offers Rapid Deployment for Community Projects, drastically reducing complex civil works, construction time, and associated risks. Furthermore, all equipment remains fully accessible for effortless Easy-Access Operation and Maintenance, simplifying daily checks and servicing.
3. Robust & Reliable Community-Focused Design
Built with durability and simplicity in mind, this system is a Durable Above-Ground Sewage Solution for Towns. Its robust construction withstands various climatic conditions. The process is designed for stability to handle typical diurnal and seasonal flow variations of a community. The focus on Reliable, Low-Maintenance Community Infrastructure ensures long-term, trouble-free operation, making it a trustworthy asset for municipal managers.
Application Scenarios
1. Decentralized Communities & Peripheral Urban Areas
Ideal for new residential developments, urban fringe areas, or villages lacking central sewer networks. Its above-ground, modular nature allows for flexible placement and phased expansion alongside community growth.
2. Remote Towns & Island Settlements
A perfect turnkey solution for remote locations, islands, or mountainous regions where traditional concrete construction is logistically challenging and expensive. The system can be shipped and installed quickly.
3. Disaster Relief & Temporary Settlements
Can be rapidly deployed to provide immediate and effective wastewater treatment for refugee camps, construction worker bases, or following natural disasters, ensuring sanitation and public health.
4. Eco-Tourism Sites & Small Resorts
Serves small clusters of eco-lodges or resorts committed to environmental protection. Its efficient treatment and compact footprint protect sensitive surrounding ecosystems.

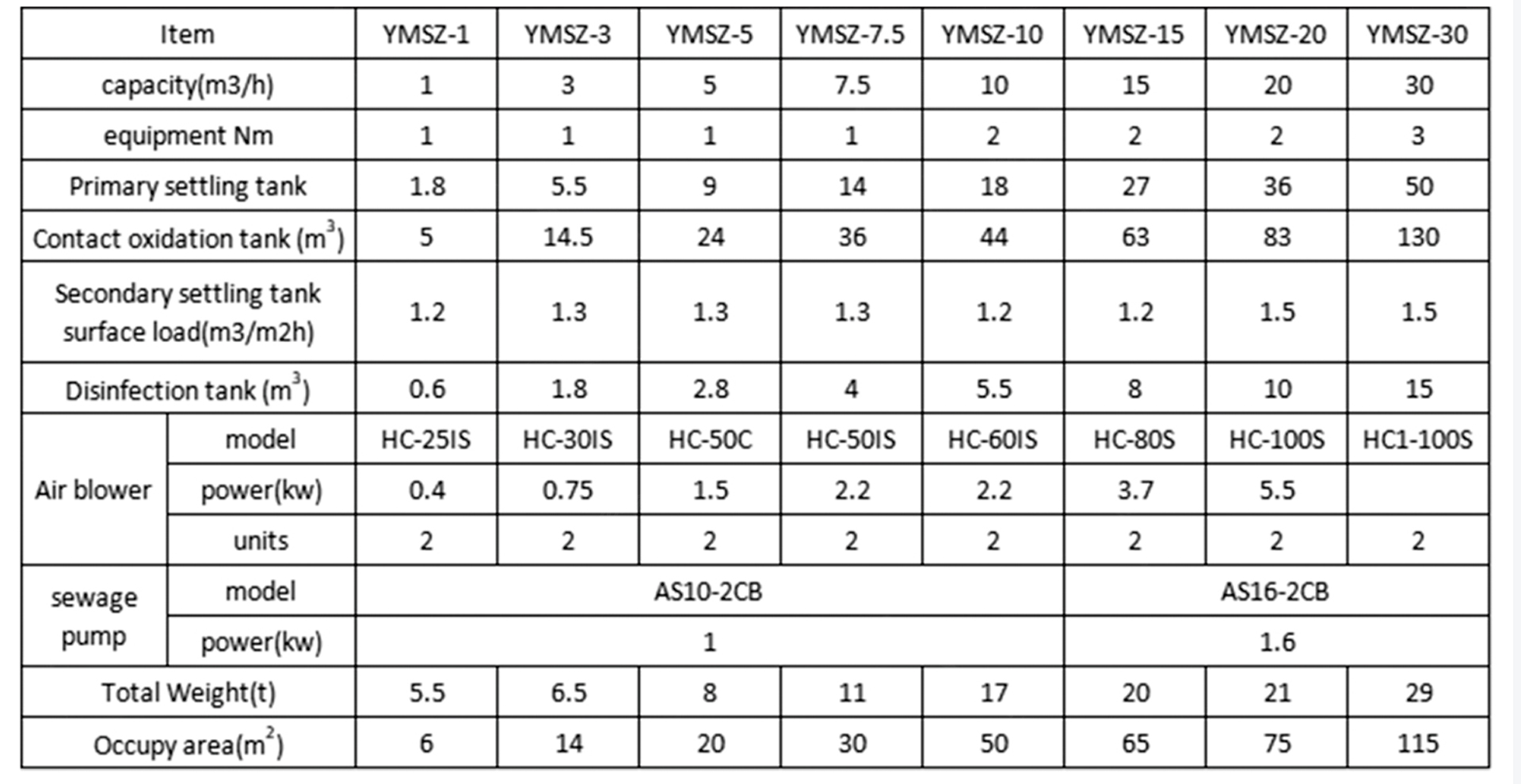

Product Parameters
Item | YMSZ-1 | YMSZ-3 | YMSZ-5 | YMSZ-7.5 | YMSZ-10 | YMSZ-15 | YMSZ-20 | YMSZ-30 | |
capacity(m3/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
equipment Nm | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | |
Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
Contact oxidation tank(m³) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
Secondary settling tank | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 | |
Disinfection tank(m³) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |
Air blower | model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80S | HC-100S | HC1-100S |
power(kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 | 5.5 | ||
units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
sewage | model | AS10-2CB | AS16-2CB | ||||||
power(kw) | 1 | 1.6 | |||||||
Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |
Occupy area(m²) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 | |
FAQ
Q: What is the required installation footprint and setup time?
A: As a packaged plant, it is highly compact. Site preparation primarily involves a level concrete base and connection points. The pre-assembled nature allows for commissioning within weeks, not months.
Q: How skilled does the operating staff need to be?
A: The system is designed for ease of use. We provide comprehensive training and a detailed manual. The automated control system handles most process adjustments, requiring only routine monitoring from the operator.
Q: Can it handle fluctuating wastewater flow and composition, common in industrial settings?
A: Yes. The hybrid biological process is renowned for its stability and resilience to shock loads, making our Industry Wastewater Packaged Sewage Treatment Plant ideal for variable industrial discharges.
Q: What are the advantages of the Stainless Steel MBR model?
A: The Stainless Steel MBR Packaged Sewage Treatment Plant offers the highest effluent quality via membrane filtration, a smaller footprint, and maximum durability. It is the premium choice for strict discharge standards and corrosive environments
Q: How do you support clients in remote locations?
A: We offer remote troubleshooting support via video call and a network of local partners. The design prioritizes ease of maintenance, and we ensure critical spare parts are readily available.
