Advanced Fixed-Film Biofilm Process
At the core of this system is a highly efficient Biofilm Package Sewage Treatment Plant design. Wastewater flows through specialized media that hosts a protected, dense layer of microorganisms.,Offering superior resistance to toxic shocks, temperature fluctuations, and varying loadings, ensuring uninterrupted compliance.
Sequential Anaerobic-Anoxic-Oxic Environments
The plant is engineered to intelligently create sequential Anaerobic, Anoxic, and Oxic conditions within a single, integrated reactor. The result is a comprehensive purification process that meets stringent municipal discharge or reuse standards.
Scalable & Flexible Modular Design

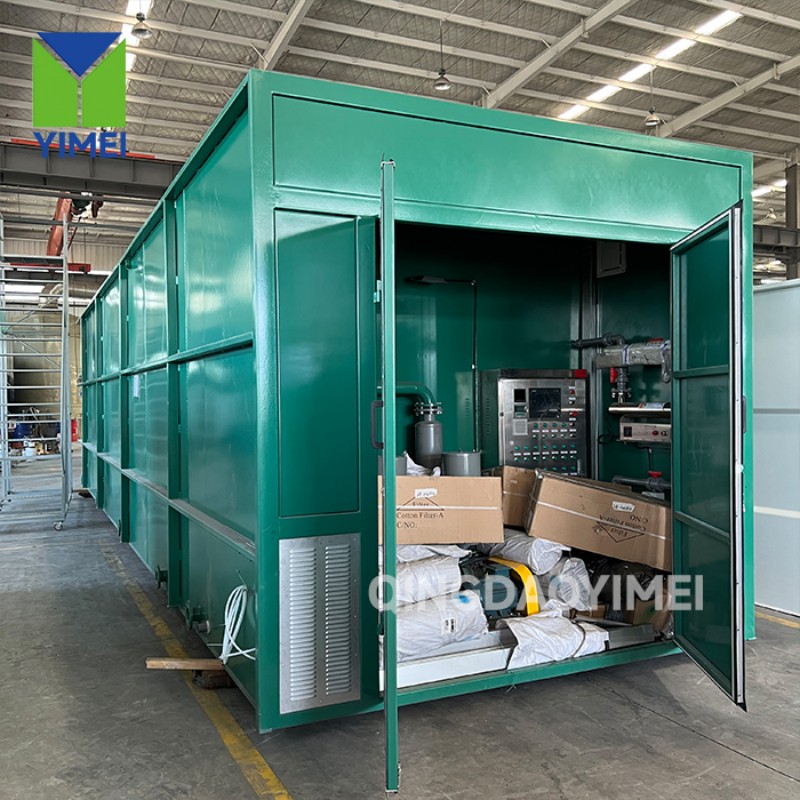

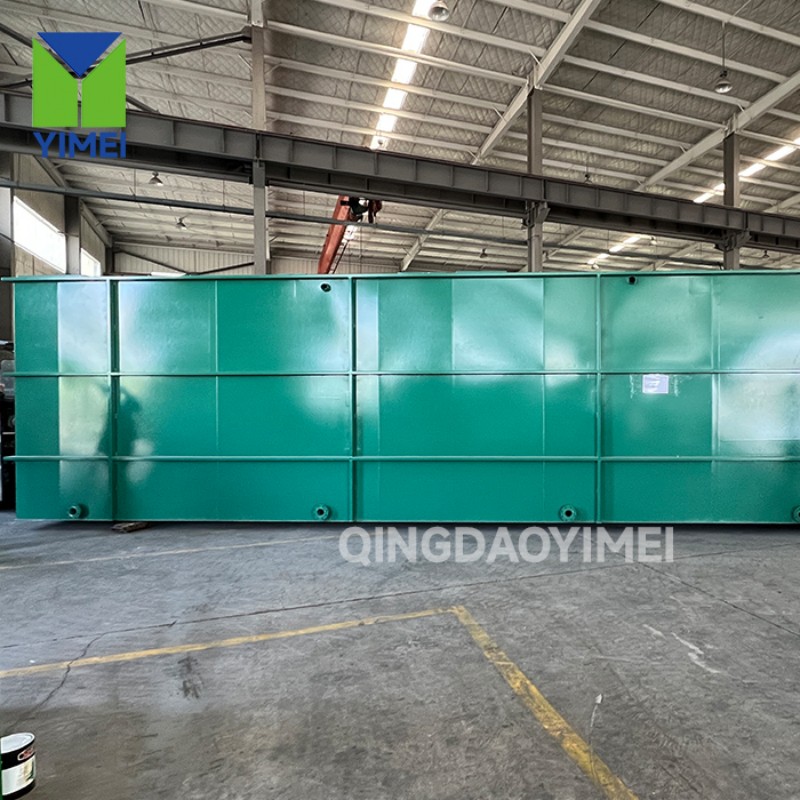

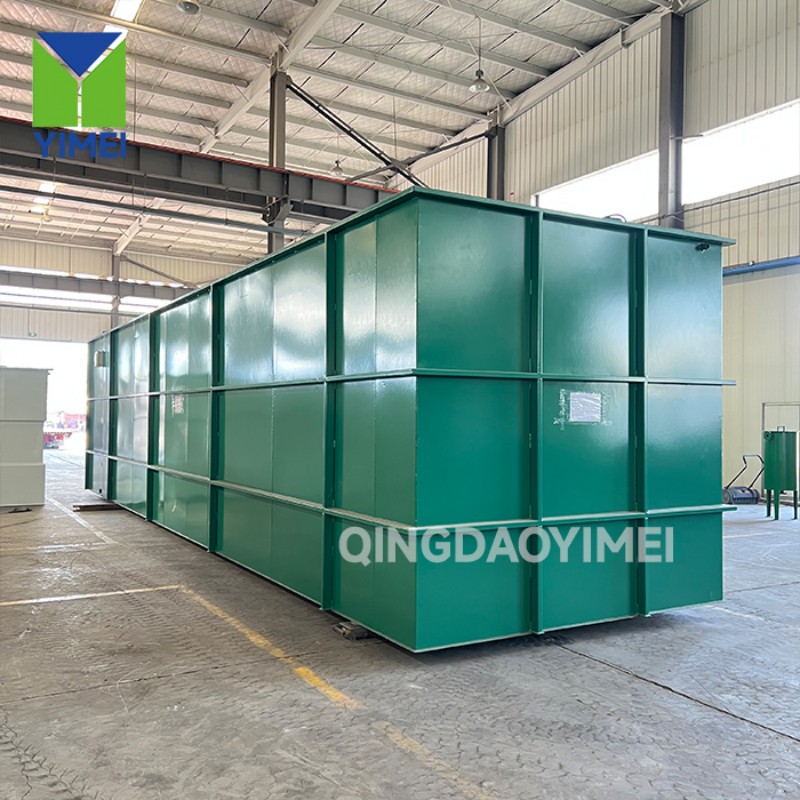

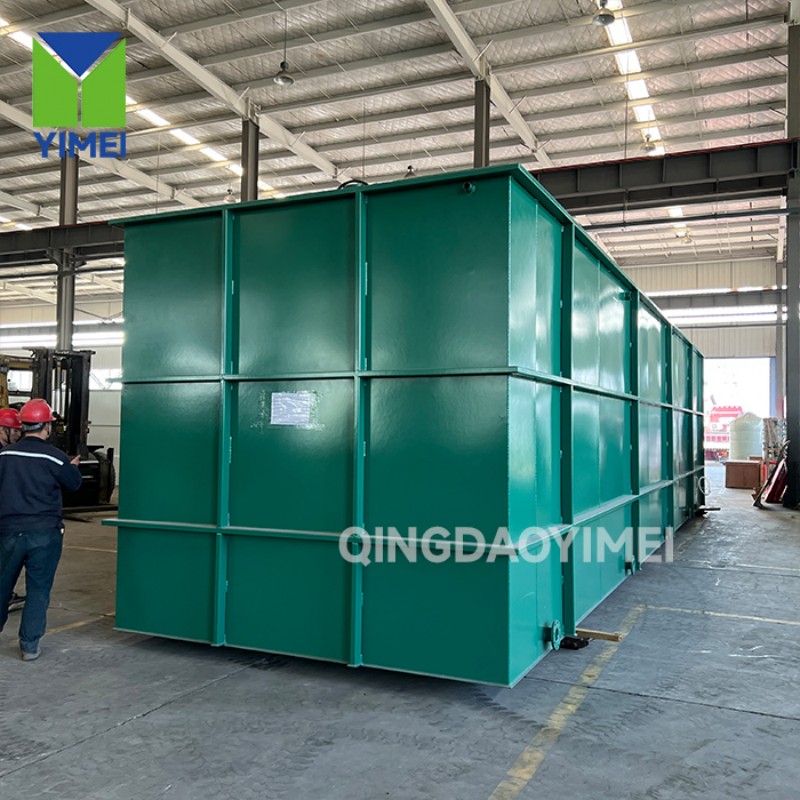

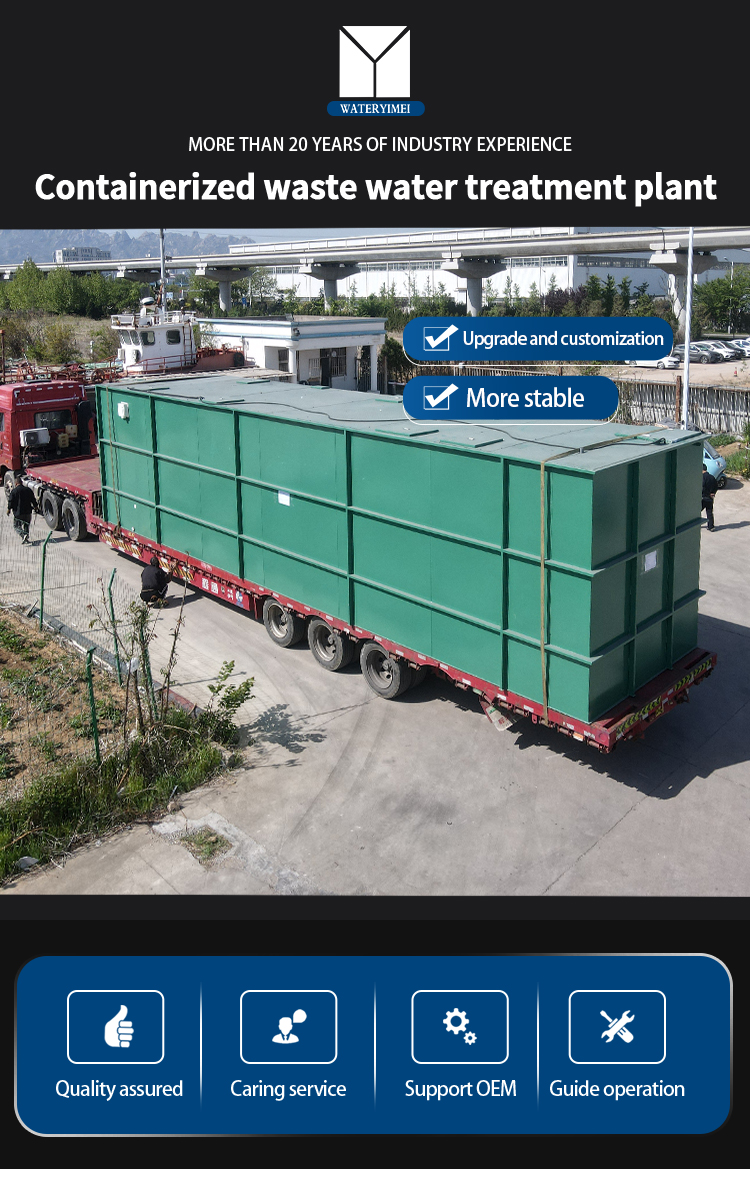

The Modular Municipal Package Sewage Treatment Plant is built around a scalable, containerized concept. Treatment capacity can be easily increased by adding standardized modules, allowing for phased investment that matches community growth.
Key Advantages for Community-Wide Applications

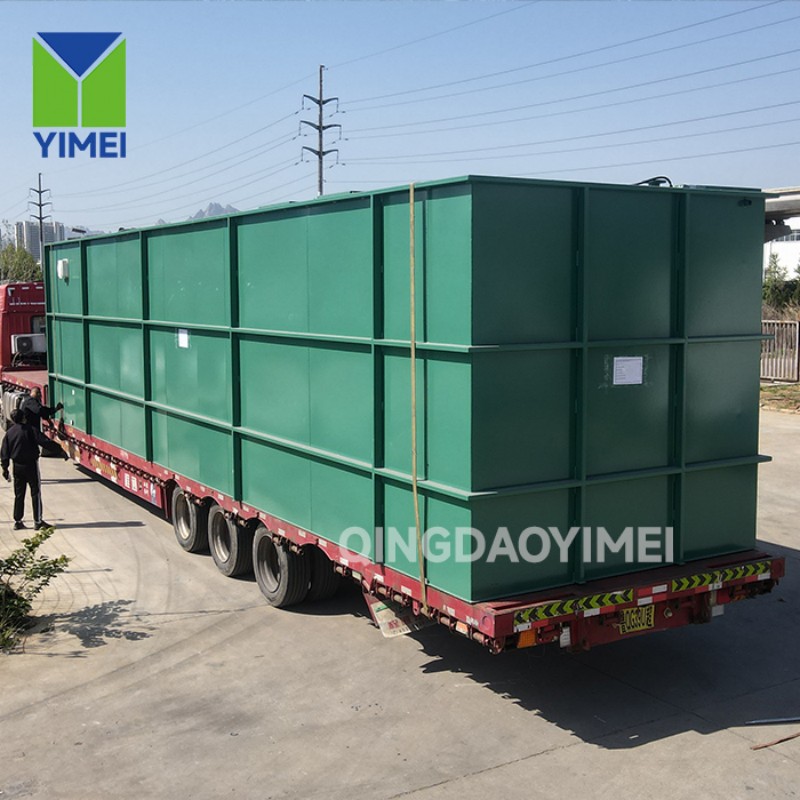

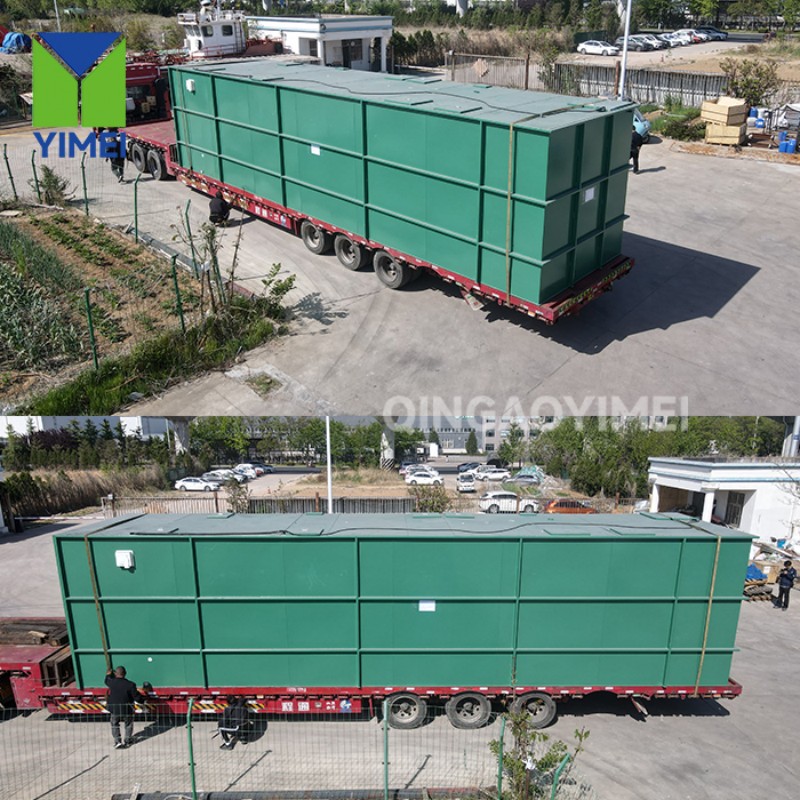

Rapid Deployment & Minimal Civil Works: Pre-fabricated Modular units arrive on-site ready for swift installation, significantly cutting down project timelines and construction costs compared to traditional concrete plants.
Low Maintenance & Operational Simplicity: The protected Biofilm requires less operator intervention and does not need sludge recirculation, reducing energy consumption and the need for highly skilled personnel—a critical advantage in remote or resource-limited areas.

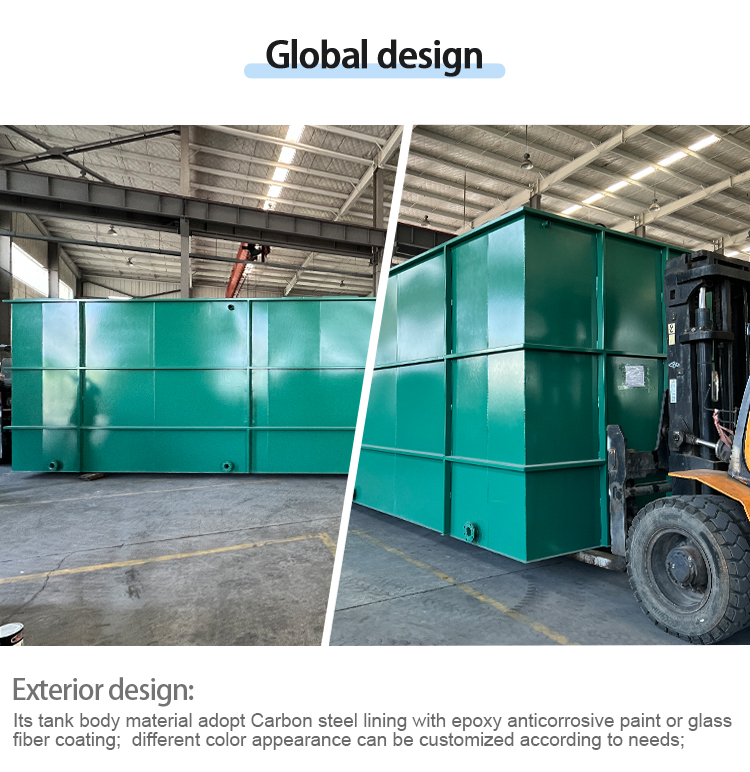

Durable for Harsh Climates: Constructed with corrosion-resistant materials, the plant is built to withstand high humidity, coastal air, and extreme weather, ensuring decades of reliable service.
Odor-Free & Community-Friendly: The enclosed Modular design and aerobic process effectively contain and treat odors, making the plant a neighbor-friendly solution suitable for installation near residential areas.

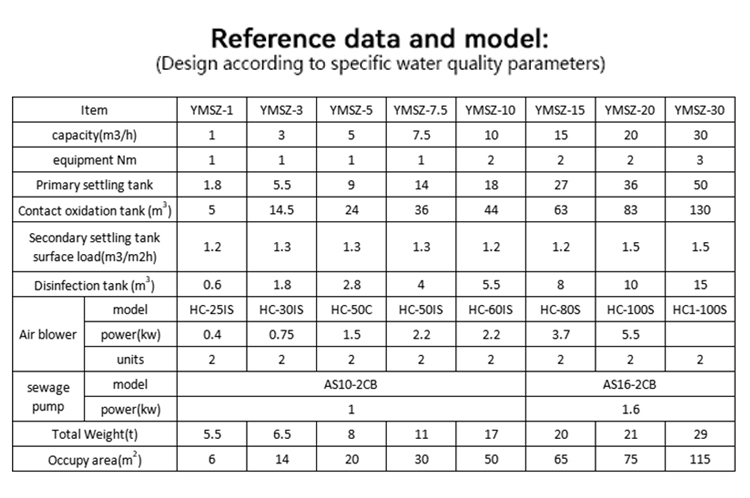

Product Parameters
| Item | YMSZ-1 | YMSZ-3 | YMSZ-5 | YMSZ-7.5 | YMSZ-10 | YMSZ-15 | YMSZ-20 | YMSZ-30 | |
| capacity(m3/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| equipment Nm | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | |
| Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
| Contact oxidation tank(m³) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
| Secondary settling tank surface load(m3/m2h) | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 | |
| Disinfection tank(m³) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |
| Air blower | model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80S | HC-100S | HC1-100S |
| power(kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 | 5.5 | ||
| units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
sewage pump | model | AS10-2CB | AS16-2CB | ||||||
| power(kw) | 1 | 1.6 | |||||||
| Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |
| Occupy area(m²) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 | |
FAQ
Q: What is the required installation footprint and setup time?
A: As a packaged plant, it is highly compact. Site preparation primarily involves a level concrete base and connection points. The pre-assembled nature allows for commissioning within weeks, not months.
Q: How skilled does the operating staff need to be?
A: The system is designed for ease of use. We provide comprehensive training and a detailed manual. The automated control system handles most process adjustments, requiring only routine monitoring from the operator.
Q: Can it handle fluctuating wastewater flow and composition, common in industrial settings?
A: Yes. The hybrid biological process is renowned for its stability and resilience to shock loads, making our Industry Wastewater Packaged Sewage Treatment Plant ideal for variable industrial discharges.
Q: What are the advantages of the Stainless Steel MBR model?
A: The Stainless Steel MBR Packaged Sewage Treatment Plant offers the highest effluent quality via membrane filtration, a smaller footprint, and maximum durability. It is the premium choice for strict discharge standards and corrosive environments
Q: How do you support clients in remote locations?
A: We offer remote troubleshooting support via video call and a network of local partners. The design prioritizes ease of maintenance, and we ensure critical spare parts are readily available.
