Advanced Hybrid Treatment Process
The core principle of this plant is a sophisticated hybrid biochemical process. It uniquely combines the strengths of the activated sludge method with a fixed biological membrane system. This dual-action approach ensures superior treatment efficiency and system resilience.
Enhanced Microbial Efficiency with Bio-Carriers
We integrate advanced biological carriers into the reactor. These carriers foster the growth and continuous renewal of diverse bacterial colonies and biofilms, dramatically increasing the contact between microorganisms and pollutants. This design is a key feature of our high-performance MBR Packaged Sewage Treatment Plant.

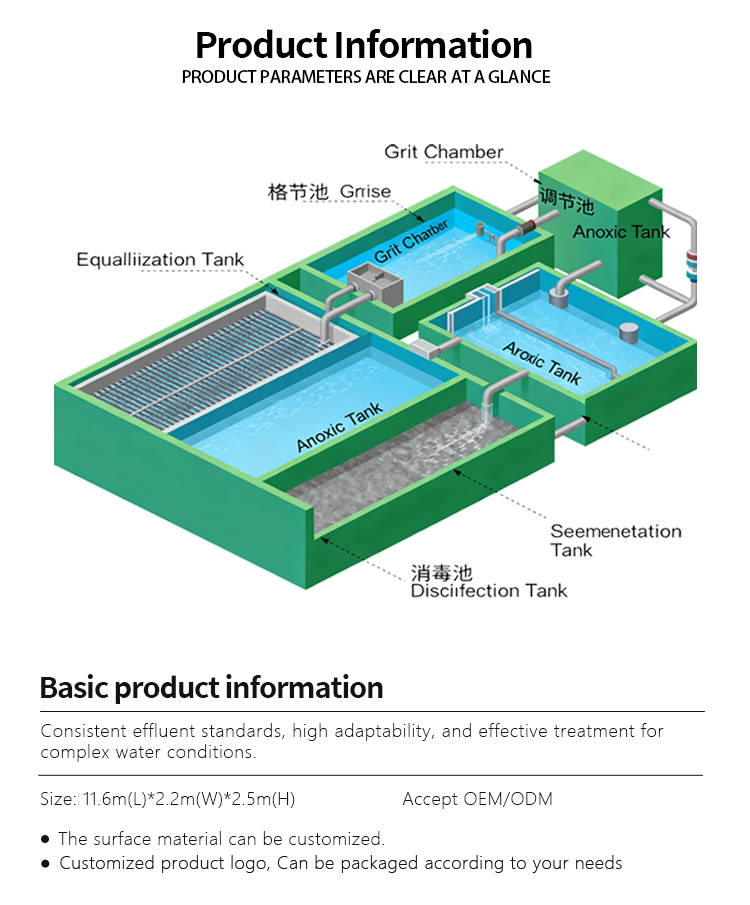

Multi-Stage Environment for Superior Purification
The system is engineered to sequentially create anaerobic, anoxic, and aerobic environments within a single reactor. This cyclical process enriches specialized microbial populations, intensifying the removal of organic matter (BOD/COD) and achieving advanced nutrient removal (nitrogen and phosphorus).

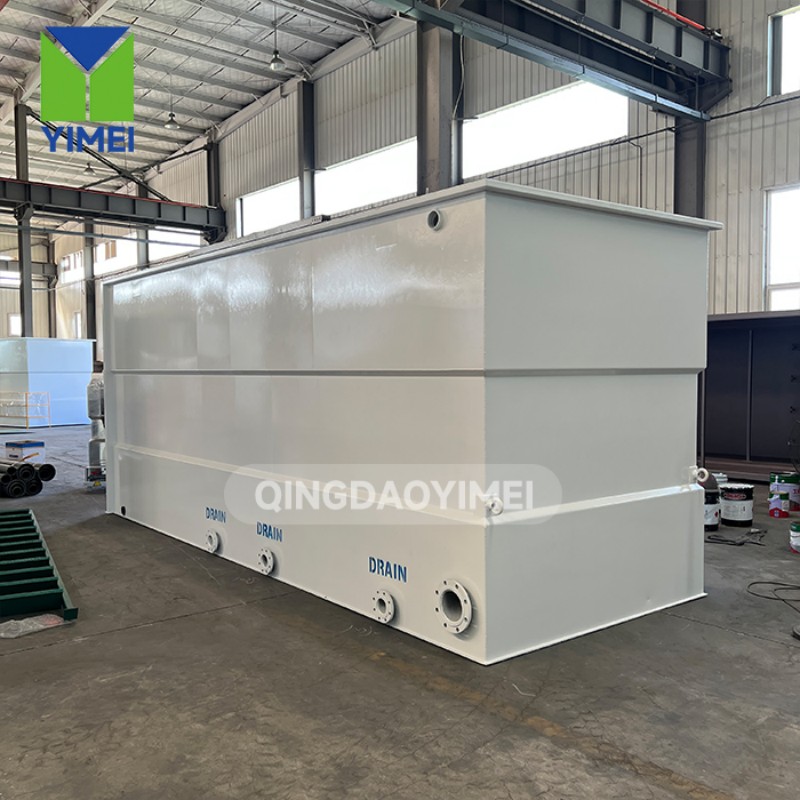

Robust Construction for Demanding Environments
Engineered for durability, key components of our Industry Wastewater Stainless Steel Packaged Sewage Treatment Plant are constructed from high-grade stainless steel. This ensures exceptional corrosion resistance, structural integrity, and a long service life, even in challenging coastal or high-humidity conditions.
Key Advantages for Tropical & Developing Regions

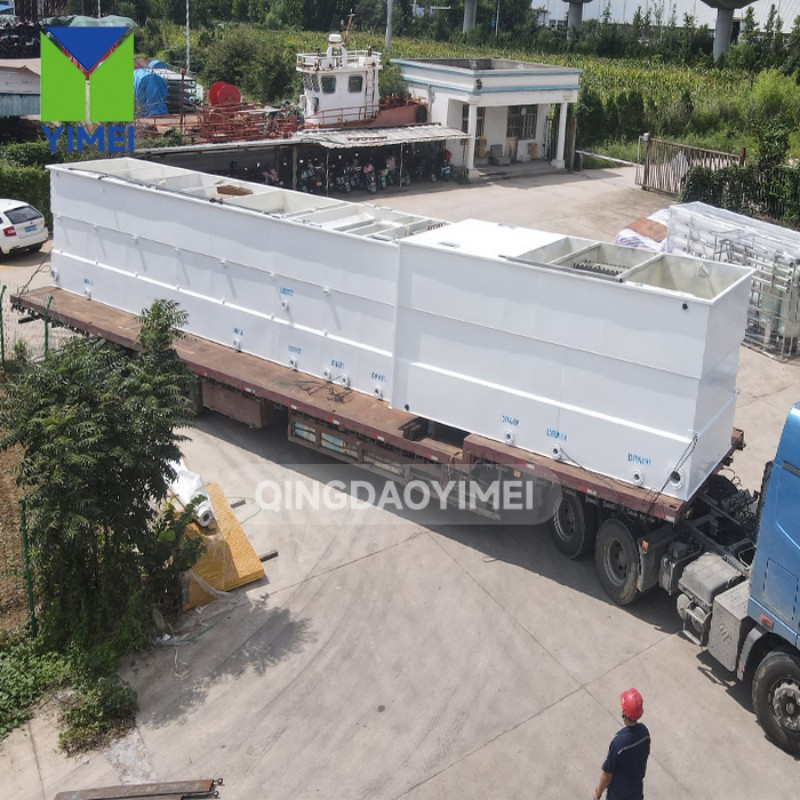

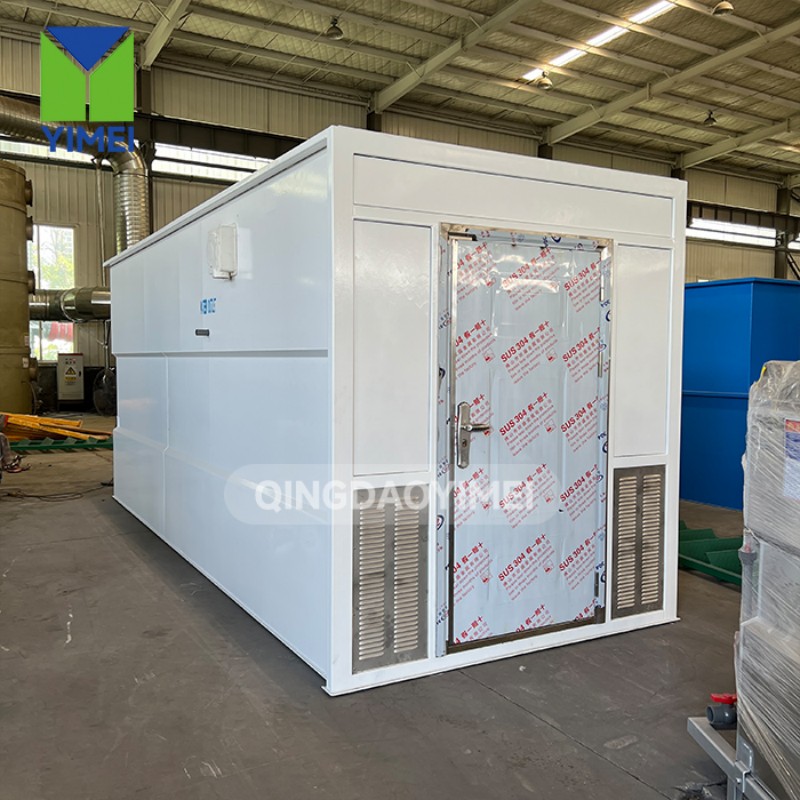

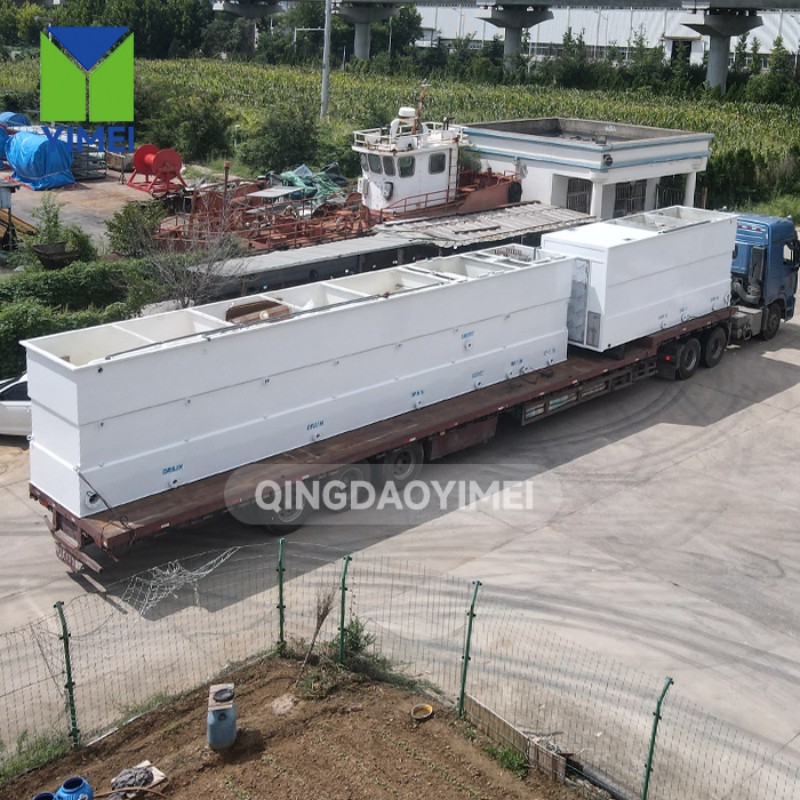

Compact & Pre-Assembled: Arrives as a skid-mounted or containerized unit, minimizing civil works and installation time—perfect for areas with limited space or technical expertise.
High Treatment Efficiency: The Industry Wastewater MBR Packaged Sewage Treatment Plant variant consistently produces high-quality effluent, suitable for safe discharge or reuse (e.g., irrigation), addressing water scarcity concerns.
Low Operational Cost: Automated controls reduce the need for constant expert supervision, while the robust process is less sensitive to inflow fluctuations.
Durability: The Stainless Steel MBR Packaged Sewage Treatment Plant offers superior resistance to harsh climates, ensuring reliability with minimal maintenance.

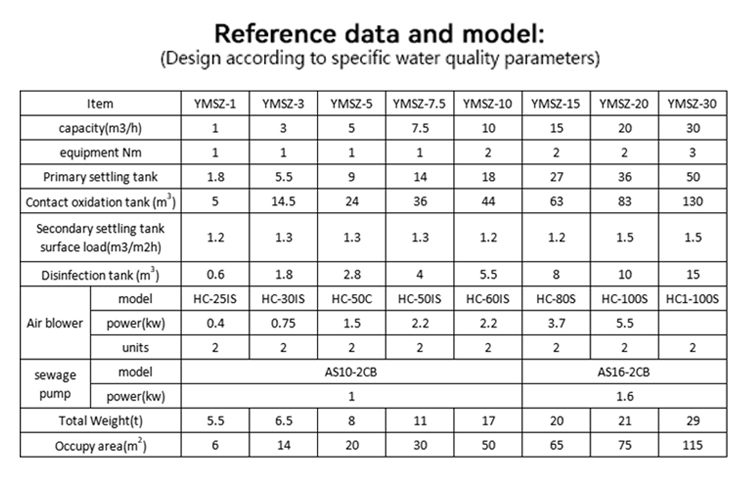

Product Parameters
| Item | YMSZ-1 | YMSZ-3 | YMSZ-5 | YMSZ-7.5 | YMSZ-10 | YMSZ-15 | YMSZ-20 | YMSZ-30 | |
| capacity(m3/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| equipment Nm | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | |
| Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
| Contact oxidation tank(m³) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
| Secondary settling tank surface load(m3/m2h) | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 | |
| Disinfection tank(m³) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |
| Air blower | model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80S | HC-100S | HC1-100S |
| power(kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 | 5.5 | ||
| units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
sewage pump | model | AS10-2CB | AS16-2CB | ||||||
| power(kw) | 1 | 1.6 | |||||||
| Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |
| Occupy area(m²) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 | |
FAQ
Q: What is the required installation footprint and setup time?
A: As a packaged plant, it is highly compact. Site preparation primarily involves a level concrete base and connection points. The pre-assembled nature allows for commissioning within weeks, not months.
Q: How skilled does the operating staff need to be?
A: The system is designed for ease of use. We provide comprehensive training and a detailed manual. The automated control system handles most process adjustments, requiring only routine monitoring from the operator.
Q: Can it handle fluctuating wastewater flow and composition, common in industrial settings?
A: Yes. The hybrid biological process is renowned for its stability and resilience to shock loads, making our Industry Wastewater Packaged Sewage Treatment Plant ideal for variable industrial discharges.
Q: What are the advantages of the Stainless Steel MBR model?
A: The Stainless Steel MBR Packaged Sewage Treatment Plant offers the highest effluent quality via membrane filtration, a smaller footprint, and maximum durability. It is the premium choice for strict discharge standards and corrosive environments
Q: How do you support clients in remote locations?
A: We offer remote troubleshooting support via video call and a network of local partners. The design prioritizes ease of maintenance, and we ensure critical spare parts are readily available.
