Containerized Sewage Treatment Plant | Modular & Customized Wastewater Treatment System
Product Overview
A containerized sewage treatment plant is a prefabricated wastewater treatment system designed to integrate the main treatment equipment, piping, electrical components, and control systems into a standard or customized container structure. Compared with conventional wastewater treatment plants, this modular approach can significantly simplify transportation, installation, commissioning, and project deployment.

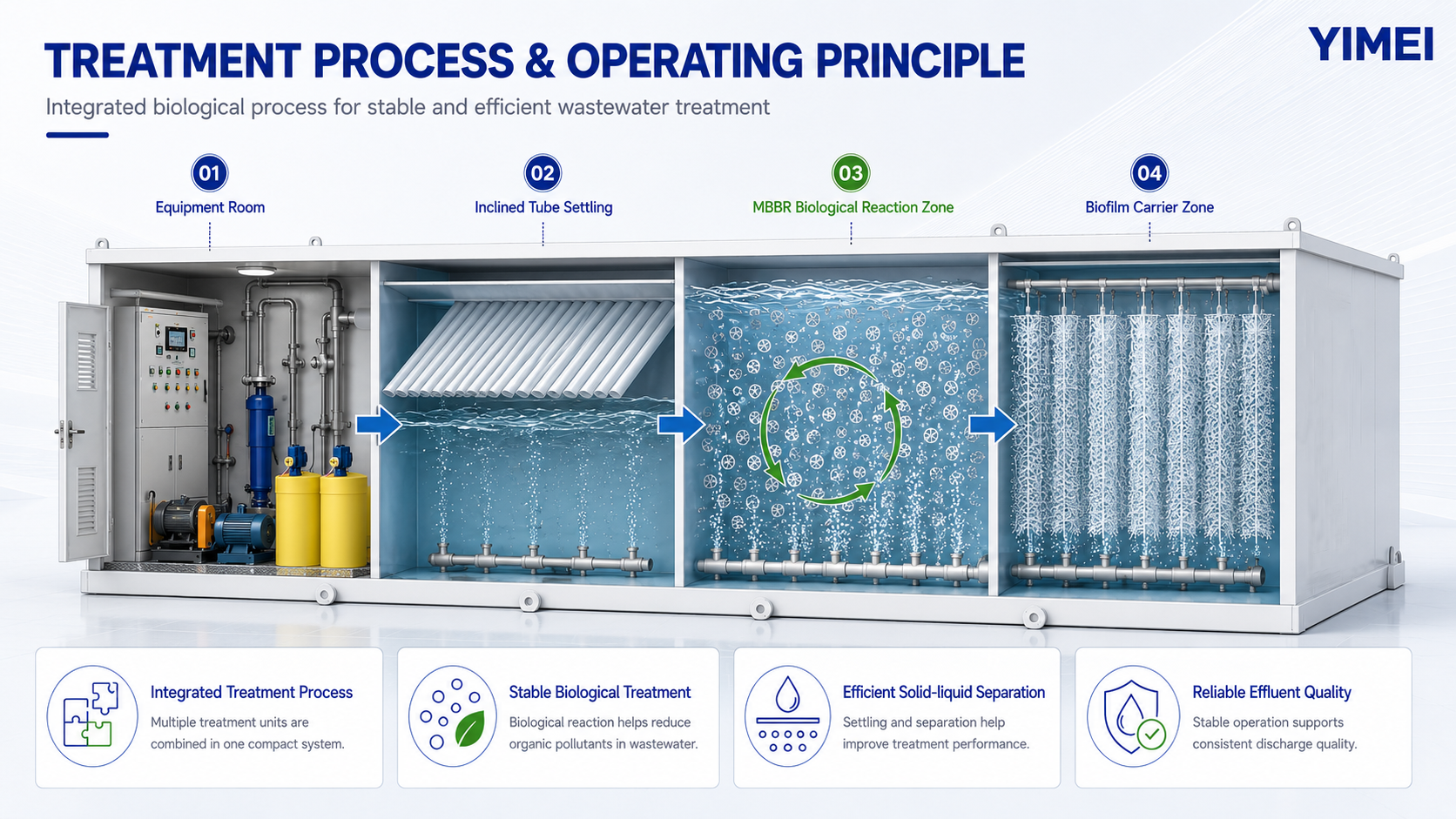

Yimei designs and manufactures containerized wastewater treatment systems according to the customer's wastewater characteristics, treatment capacity, site conditions, and required effluent quality. The system can be configured with different biological and physical treatment technologies, including MBBR, MBR, SBR, A/O, coagulation, sedimentation, filtration, and disinfection.
Technical Specifications
Item | YMSZ-1 | YMSZ-2 | YMSZ-5 | YMSZ-7.5 | YMSZ-10 | YMSZ-15 | YMSZ-20 | YMSZ-30 |
|---|---|---|---|---|---|---|---|---|
capacity(m³/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 |
equipment Nm | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 |
Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 |
Contact oxidation tank (m³) | 14 | 14.5 | 19 | 36 | 44 | 63 | 83 | 130 |
Secondary settling tank | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 |
surface load(m³/m²h) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 |
Disinfection tank(m³) | 0.6 | 1.3 | 1.3 | 4 | 5.5 | 1.2 | 1.5 | 1.5 |
Air blower - model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80S | HC-100S | HC-100S |
Air blower - power(kw) | 0.4 | 0.75 | 1.5 | 2 | 2.2 | 3.7 | 5.5 | 5.5 |
Air blower - units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
sewage pump - model | AS10-2CB | AS10-2CB | AS10-2CB | AS10-2CB | AS10-2CB | AS16-2CB | AS16-2CB | AS16-2CB |
sewage pump - power(kw) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.6 | 1.6 | 1.6 |
Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 |
Occupy area(m²) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 |

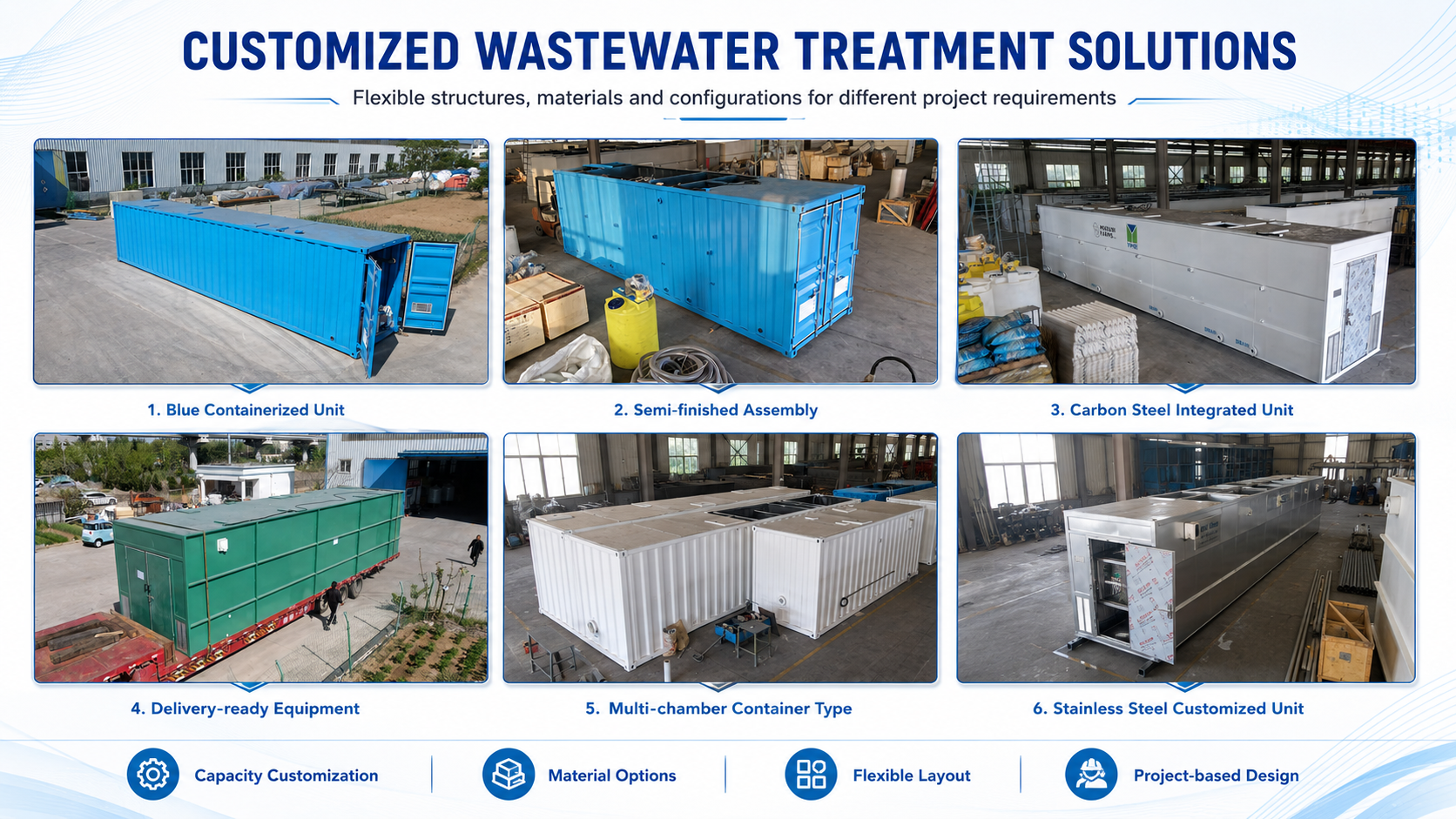

Customized Modular Design for Different Projects
Every wastewater treatment project has different requirements. Yimei provides customized containerized sewage treatment plants based on:
Wastewater source and characteristics
COD, BOD, TSS, ammonia nitrogen and other pollutants
Daily wastewater flow and peak flow
Required effluent discharge standards
Available installation area
Climate and environmental conditions
Automatic control requirements
Future capacity expansion requirements
Key Advantages of Containerized Wastewater Treatment
Fast Project Deployment
Most major components are assembled and integrated before delivery, helping reduce on-site construction and installation requirements.
Compact & Space-Saving Design
The containerized structure makes efficient use of limited land and is suitable for locations where conventional treatment facilities are difficult to construct.
Easy Transportation & Installation
The modular structure facilitates transportation to industrial sites, remote locations, temporary facilities, and areas with limited infrastructure.
Customized Treatment Capacity
Individual treatment modules can be designed and combined according to the required wastewater flow and treatment objectives.
Integrated Automation
PLC-based control systems can be configured for automatic operation, monitoring, alarm functions, and process management.
Flexible Expansion
Additional treatment modules can be incorporated when wastewater flow increases or project requirements change.
Factory-Integrated Manufacturing
Equipment integration and quality inspection can be completed in a controlled manufacturing environment before shipment, helping simplify on-site commissioning.

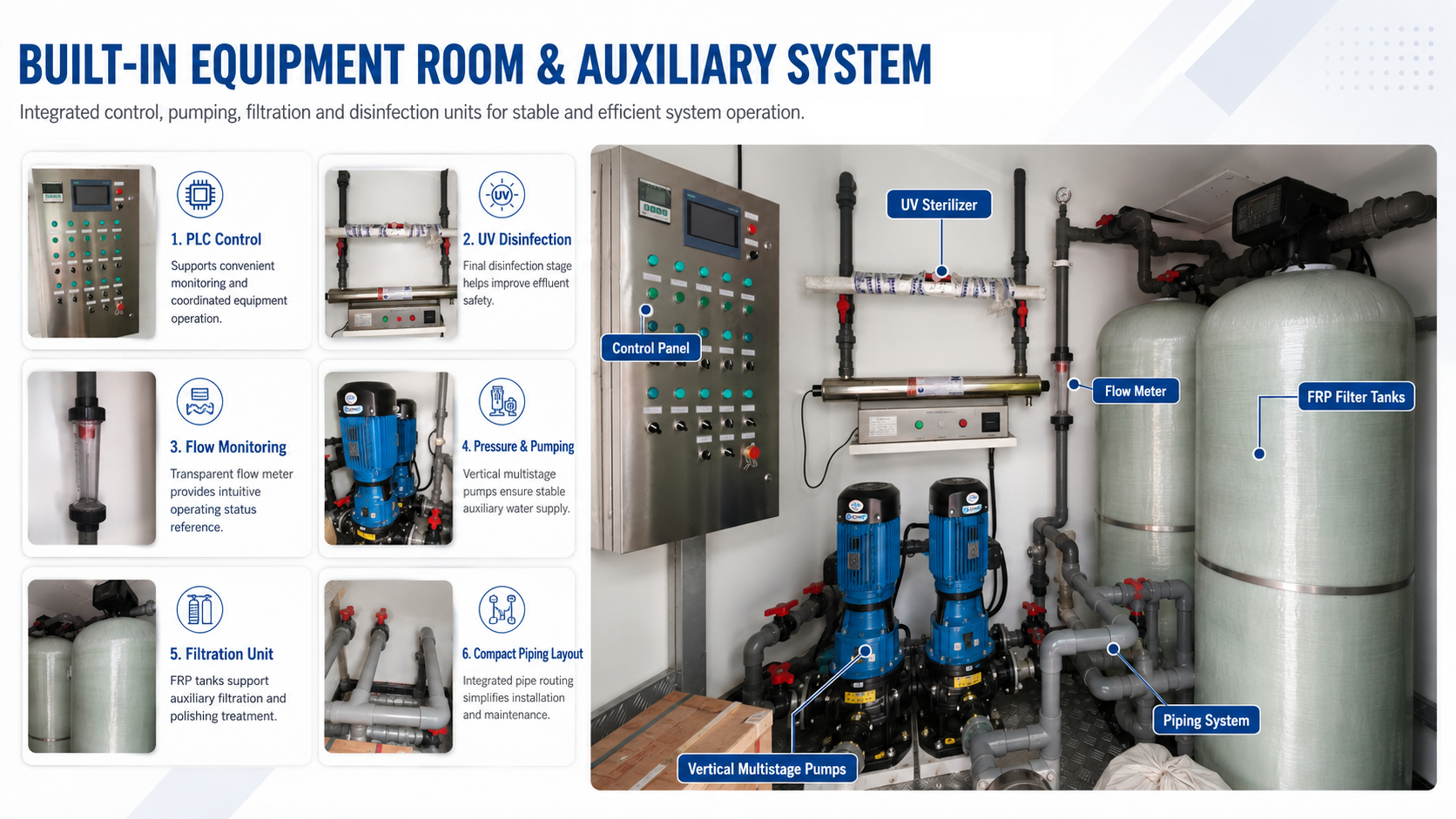

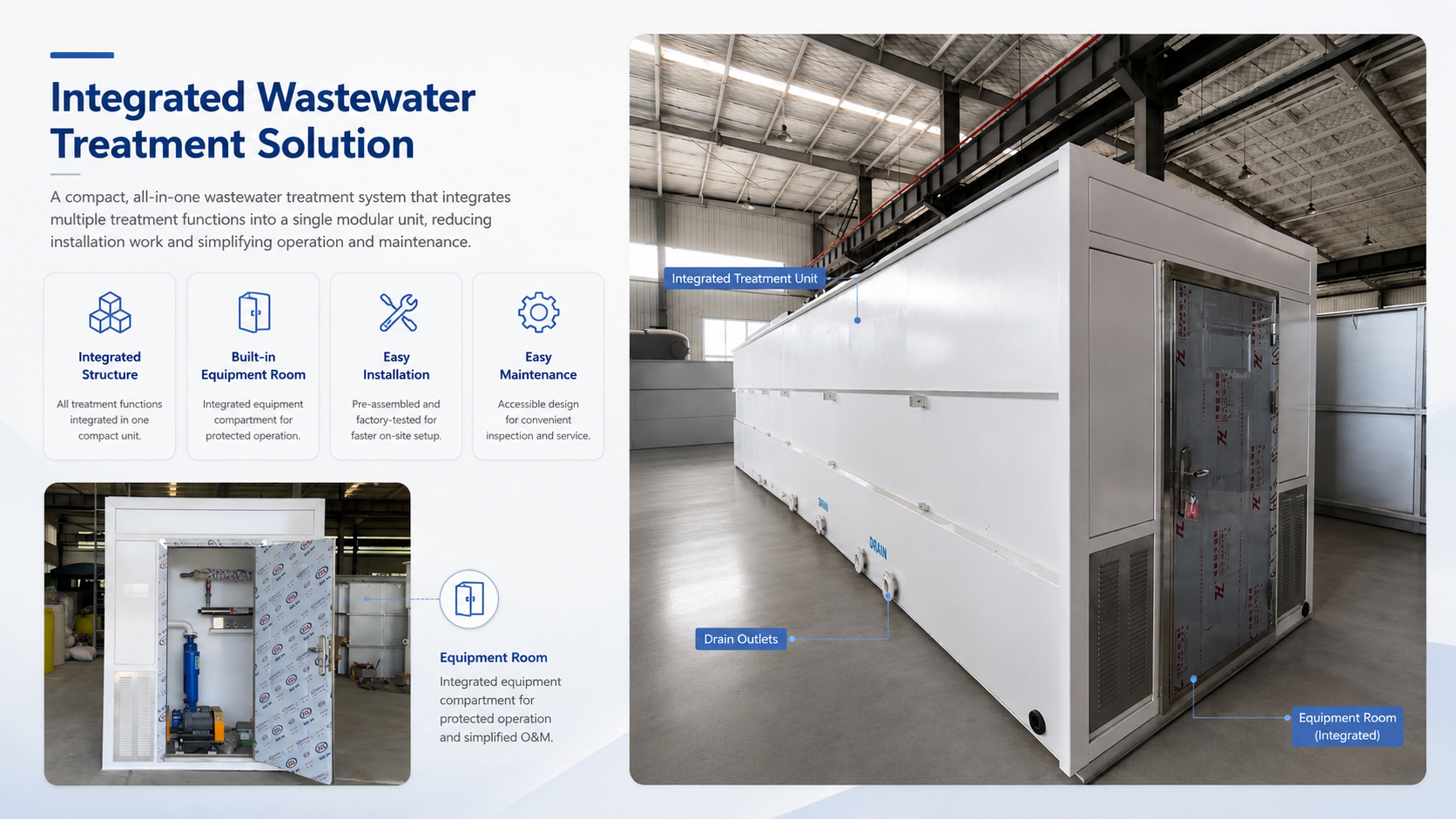

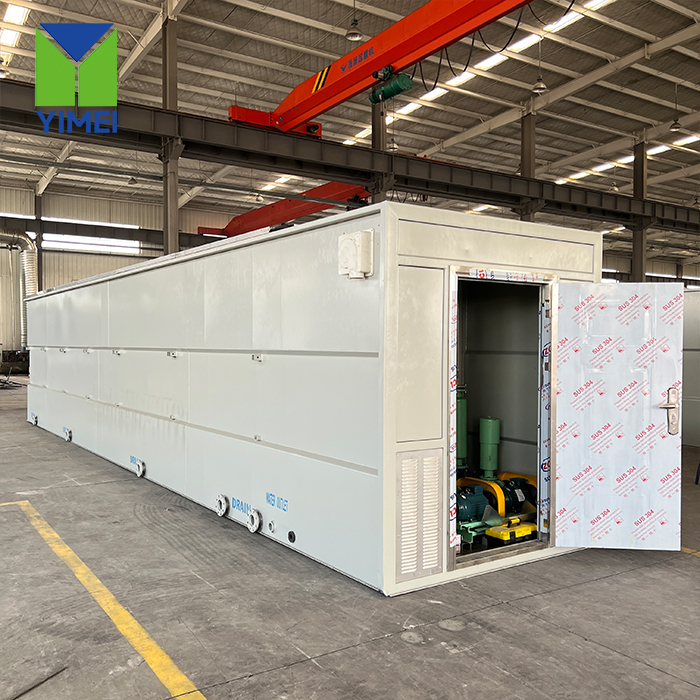

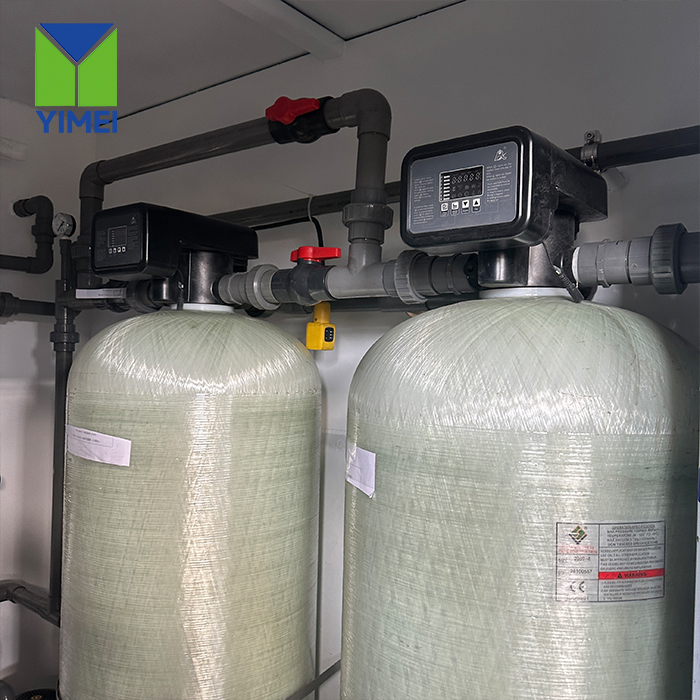

Our system comes with a fully integrated built-in equipment room, assembling complete auxiliary modules including automatic control, water pumping, flow monitoring, filtration and disinfection. The compact piping layout ensures stable, efficient and easy-maintenance system operation.
