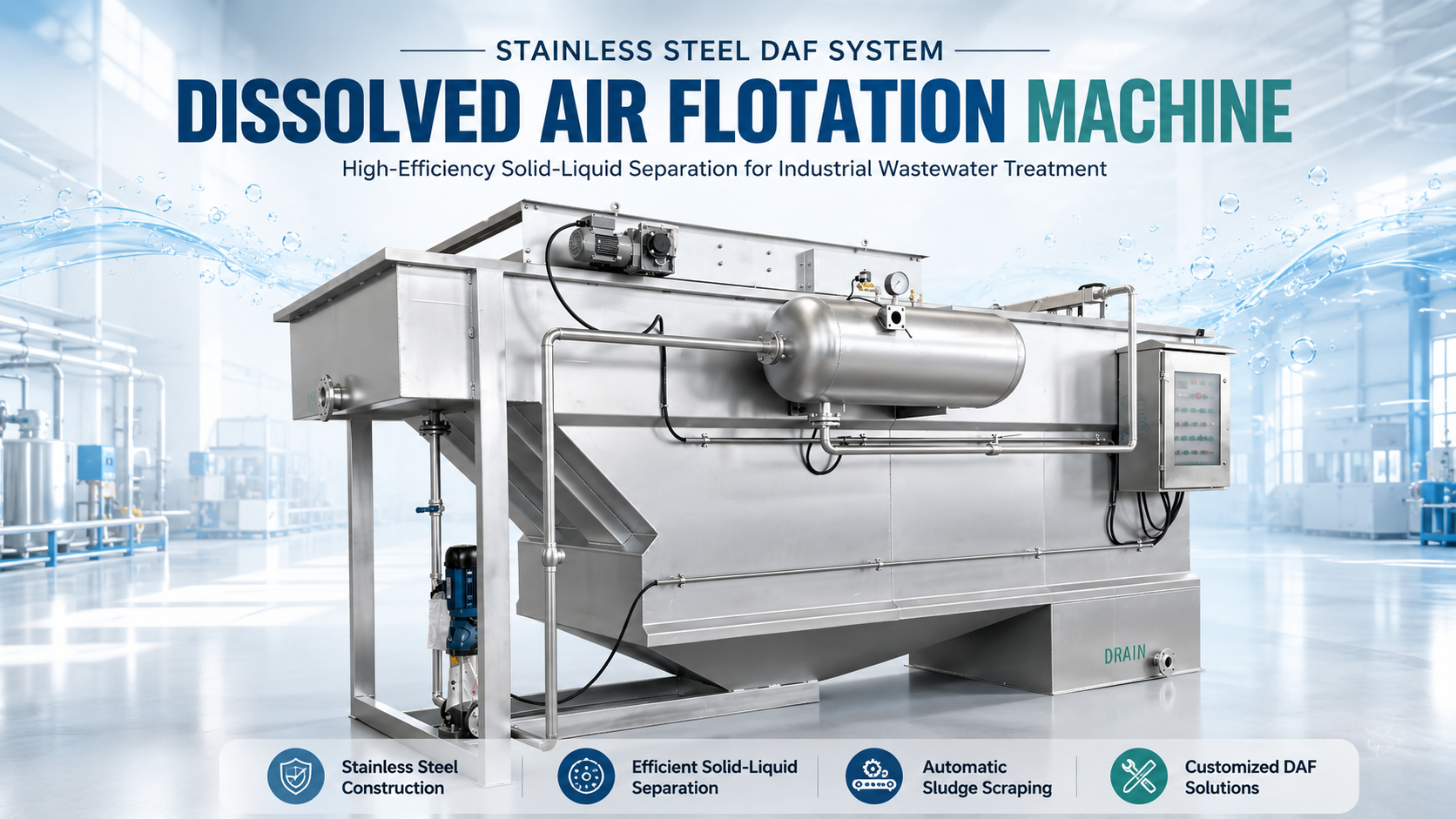

High-Efficiency Solid-Liquid Separation for Industrial Wastewater Treatment
Stainless SteelConstruction
Efficient Solid-LiquidSeparation
AutomaticSludge Scraping
Customized DAFSolutions

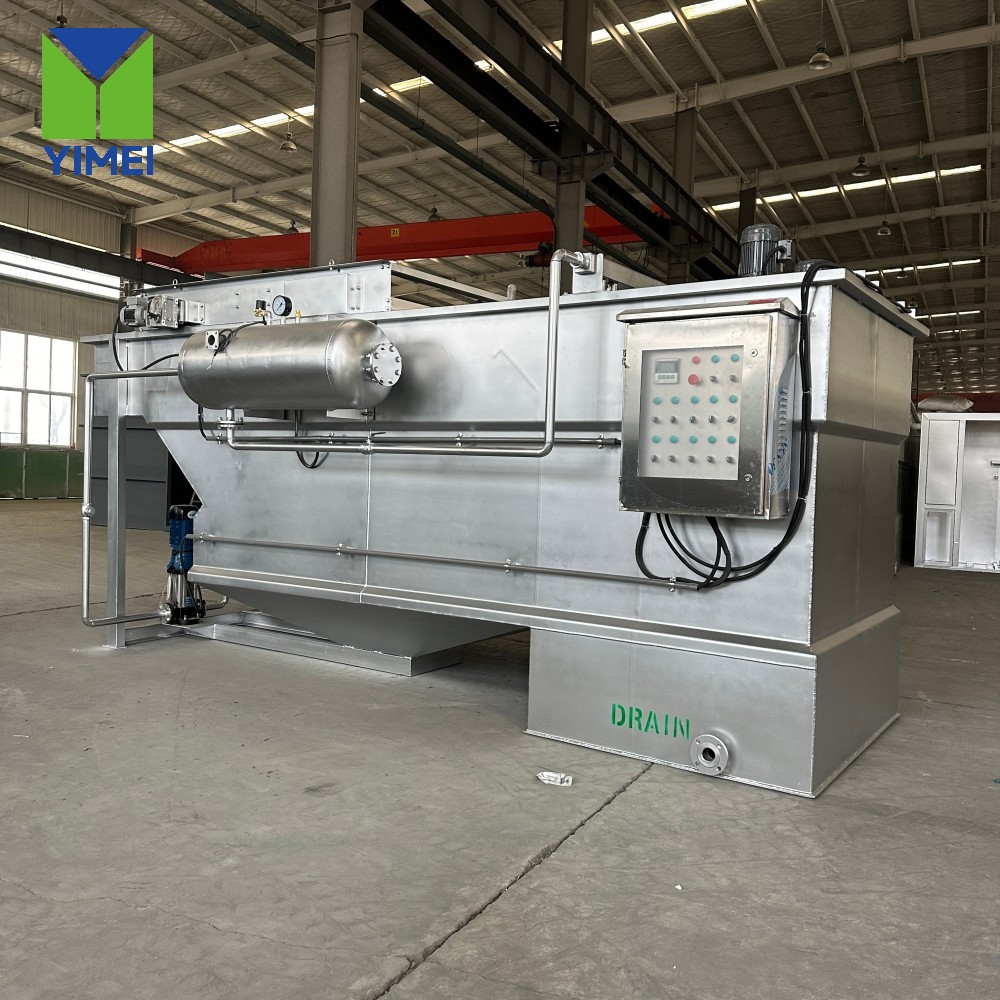

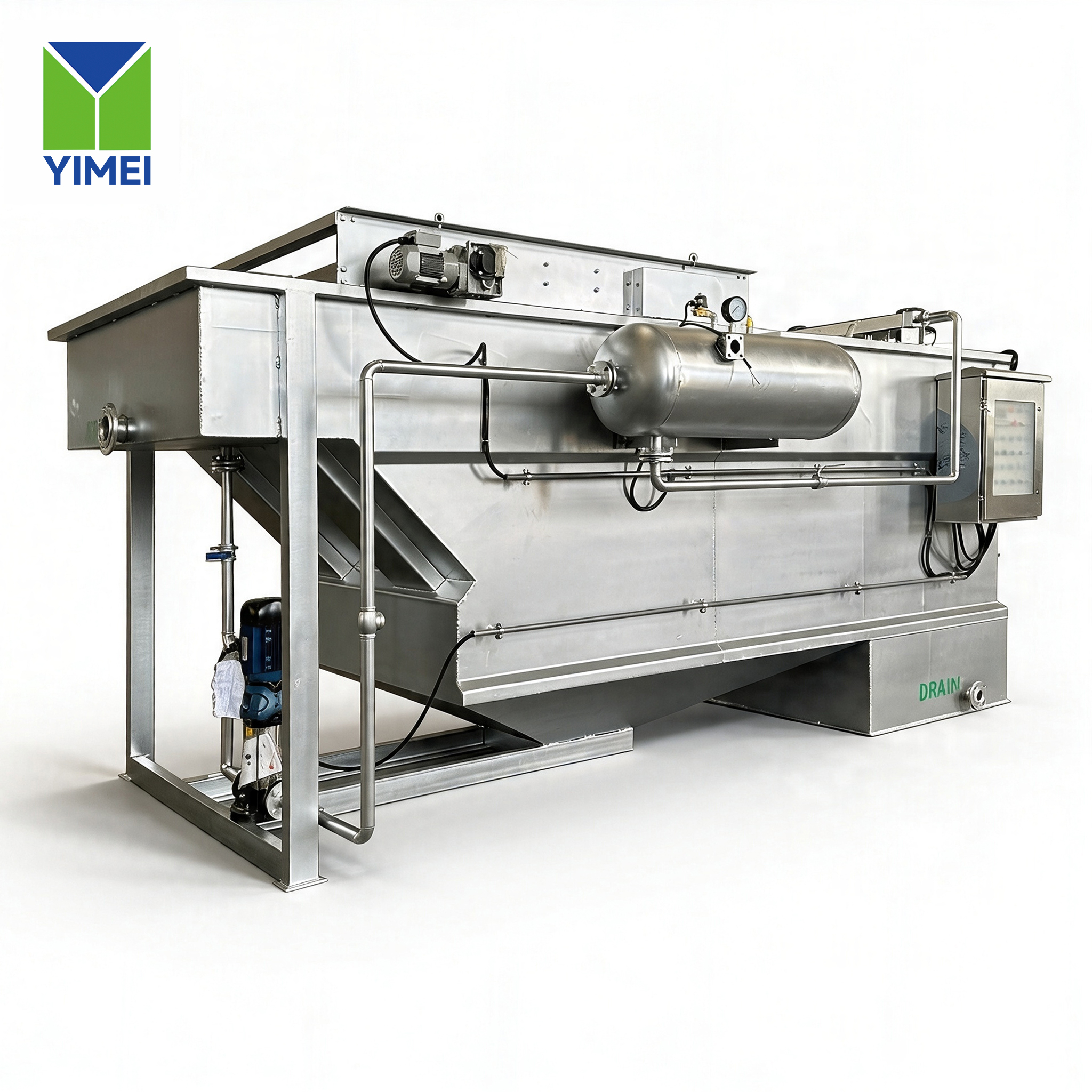

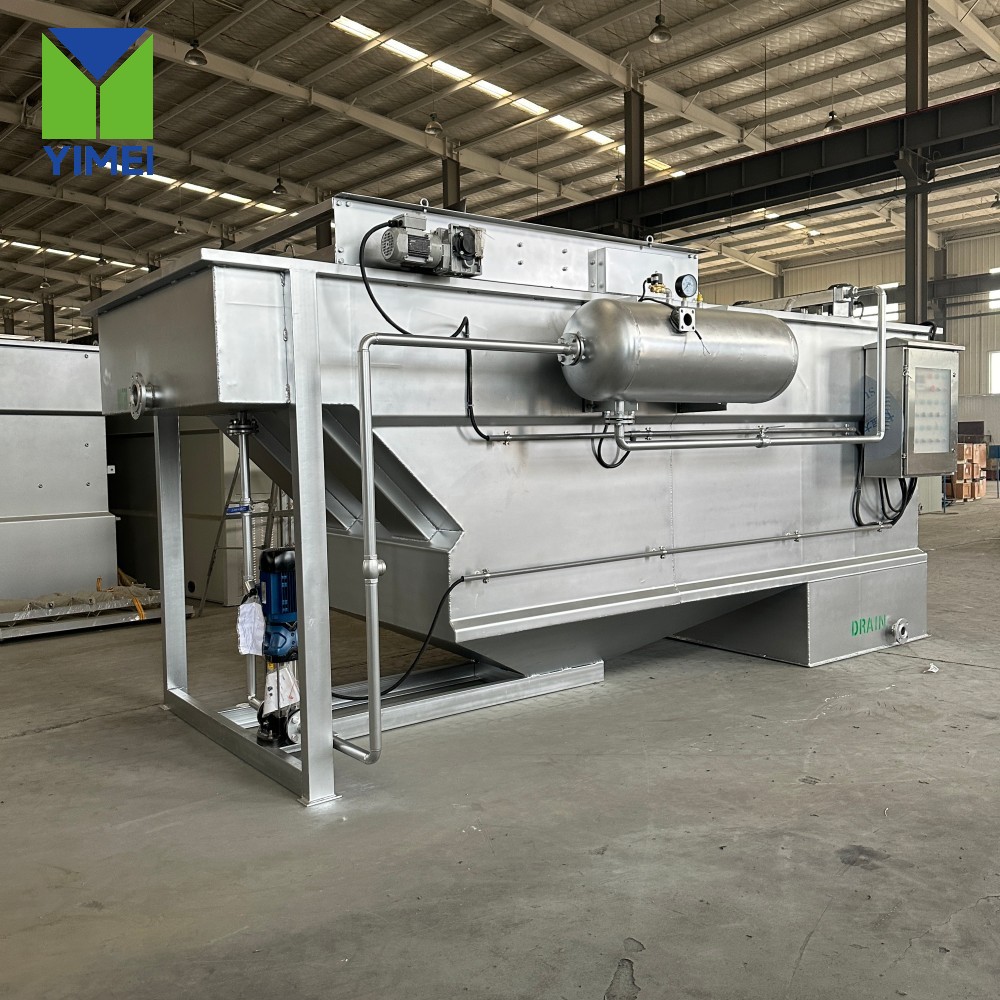

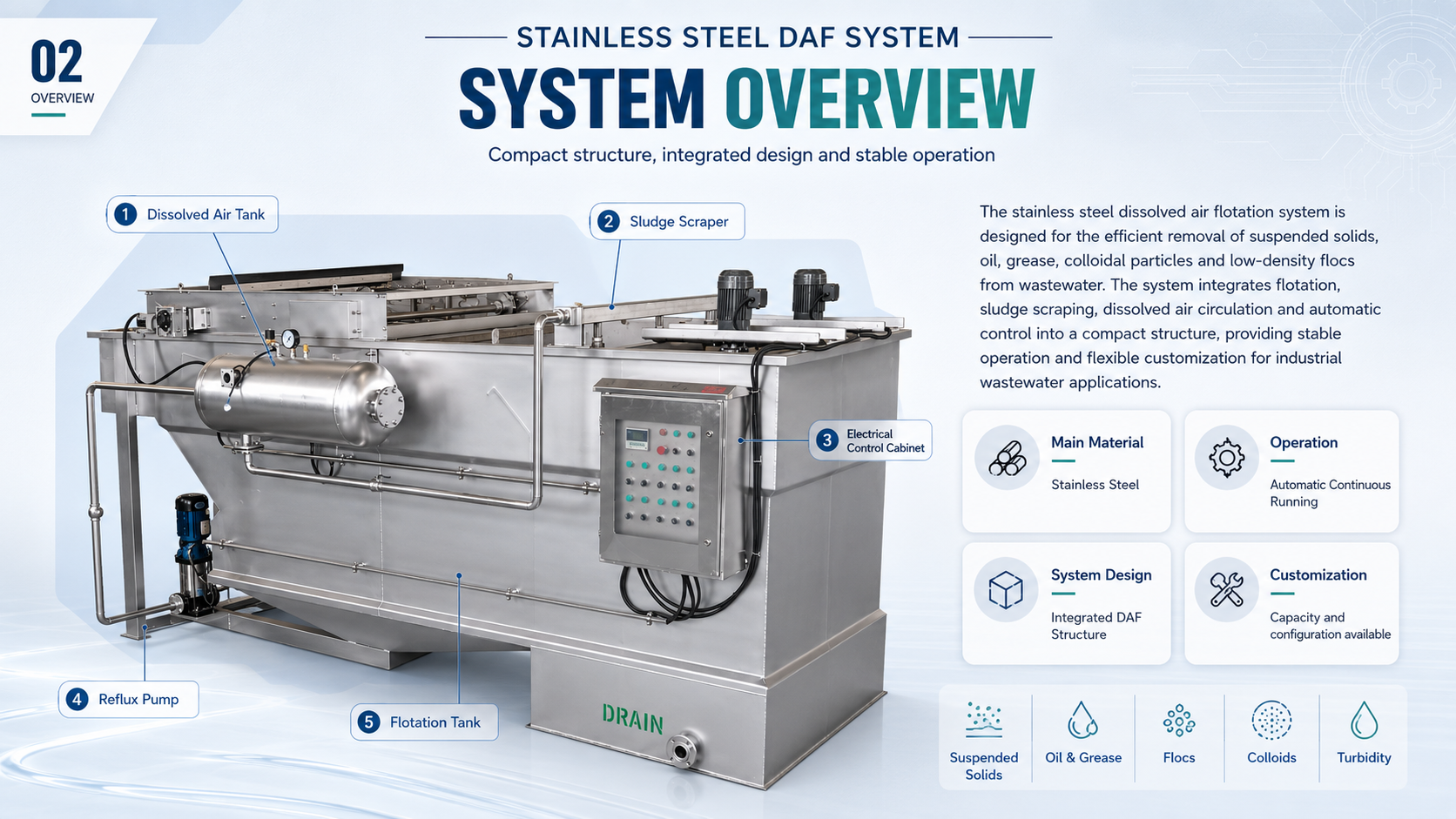

The stainless steel dissolved air flotation system isdesigned for the efficient removal of suspended solids,oil, grease, colloidal particles and low-density flocsfrom wastewater. The system integrates flotation,sludge scraping, dissolved air circulation and automaticcontrol into a compact structure, providing stableoperation and flexible customization for industrialwastewater applications.

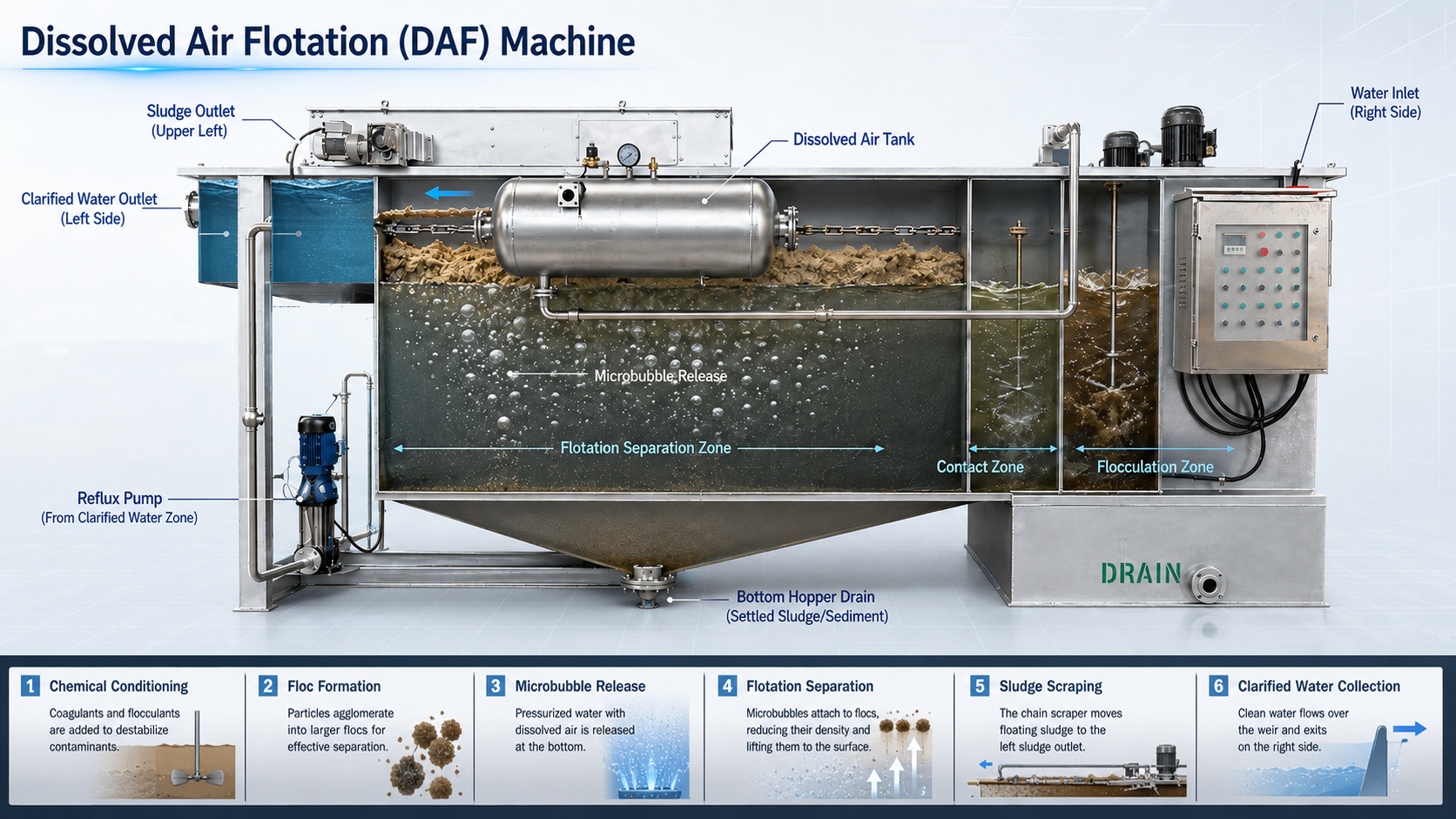

Air dissolving: Pressurized water mixes with air to form saturated dissolved air water.
Air release: Pressure reduction generates countless tiny microbubbles.
Floc adhesion: Microbubbles stick to oily sludge & suspended solids.
Sludge removal: Floated flocs scraped off; clean water drains from bottom outlet.

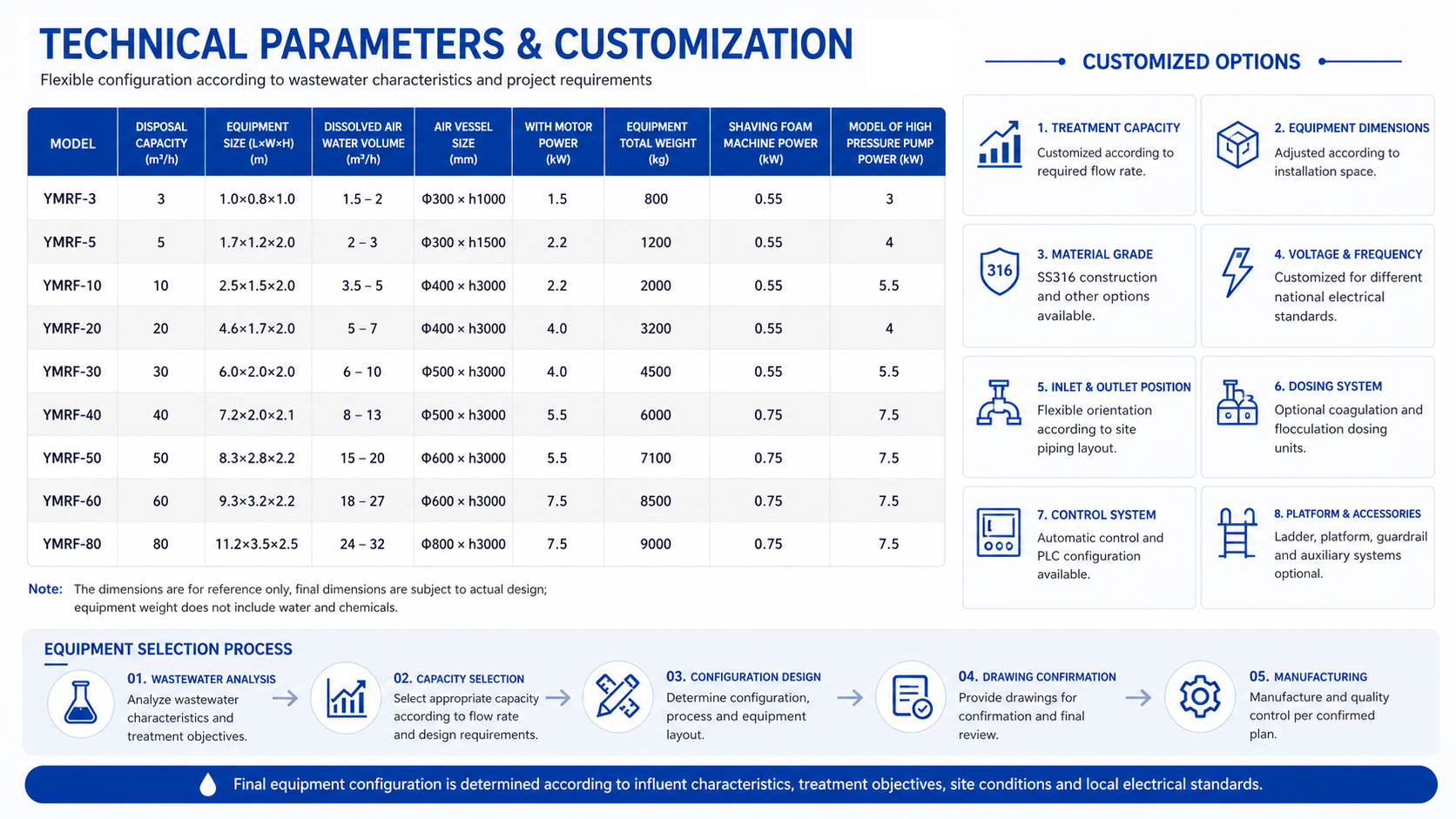

| Equipment size (m) | Dissolved air vessel size (mm) | Motor power (Kw) | Equipment total weight (Kg) | |||
Length | Length | Width | Height | ||||
YMRF-1 | 1 | 1.0 | 0.8 | 1.0 | Φ200×800 | 1.5 | 300 |
YMRF-3 | 3 | 1.7 | 1.2 | 2.0 | Φ300×1000 | 2.2 | 800 |
YMRF-5 | 5 | 2.5 | 1.5 | 2.0 | Φ300×1500 | 2.2 | 1200 |
YMRF-10 | 10 | 4.6 | 1.7 | 2.0 | Φ400×3000 | 4.0 | 2000 |
YMRF-20 | 20 | 6.0 | 2.0 | 2.0 | Φ400×3000 | 4.0 | 3200 |
YMRF-30 | 30 | 7.2 | 2.0 | 2.1 | Φ500×3000 | 5.5 | 4500 |
YMRF-40 | 40 | 8.3 | 2.8 | 2.2 | Φ500×3000 | 5.5 | 6000 |
YMRF-50 | 50 | 9.3 | 3.2 | 2.2 | Φ600×3000 | 7.5 | 7100 |
YMRF-60 | 60 | 10.3 | 3.2 | 2.2 | Φ600×3000 | 7.5 | 8500 |
YMRF-80 | 80 | 11.2 | 3.5 | 2.5 | Φ800×3000 | 11 | 9000 |
YMRF-100 | 100 | 12.5 | 3.9 | 2.5 | Φ800×3000 | 15 | 11000 |
Customized according torequired flow rate.
Adjusted according toinstallation space.
constructionand other optionsavailable.
Customized for differentnational electricalstandards.
Flexible orientation according to site piping layout.
Optional coagulation and flocculation dosing units.
01.Food & Beverage Processing
Suspended Solids / Oil & Grease / Organic Flocs
Removes suspended matter, fats, oils and flotation-prone organic solids from food processing wastewater.
02.Slaughterhouse & Meat Processing
Blood Solids / Fat / Grease / Protein Flocs
Sultable for separating fats, proteins, suspended solids and chemically formed flocs.
03.Dairy Processing
Milk Fat / Protein / Suspended Solids
Provides efficient removal of milk fat, protein flocs and suspended solids before blological treatment.
04.Oil & Grease Wastewater
Free Oil / Emulsified Oil / Grease
Separates free oil, grease and conditioned emulsified oil through microbubble flotation.
05 Textile & Dyeing Wastewater
Fibers/ Color-Bearing Flocs /Suspended Solids
Removes fibers, suspended matter and coagulated color-bearing particles from textile wastewater.
06.Paper & Pulp Wastewater
Fiber / Pulp Solids / Fine Suspended Matter
Recovers fibers and separates pulp solids and fine suspended particles from process water.
