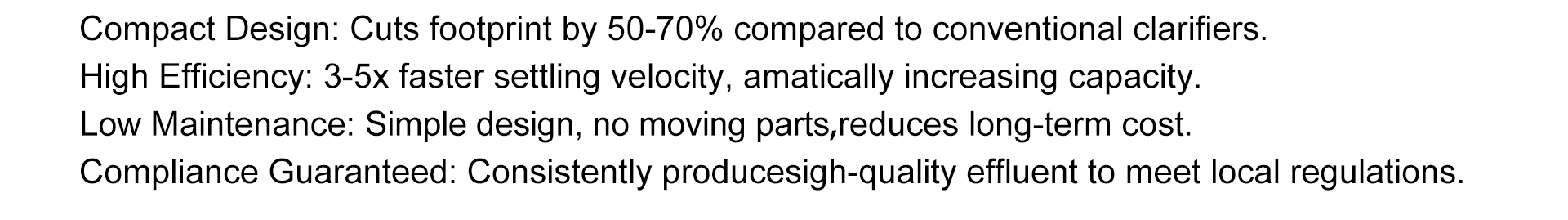

Key Features & Advantages
1. High-Rate Settling Efficiency

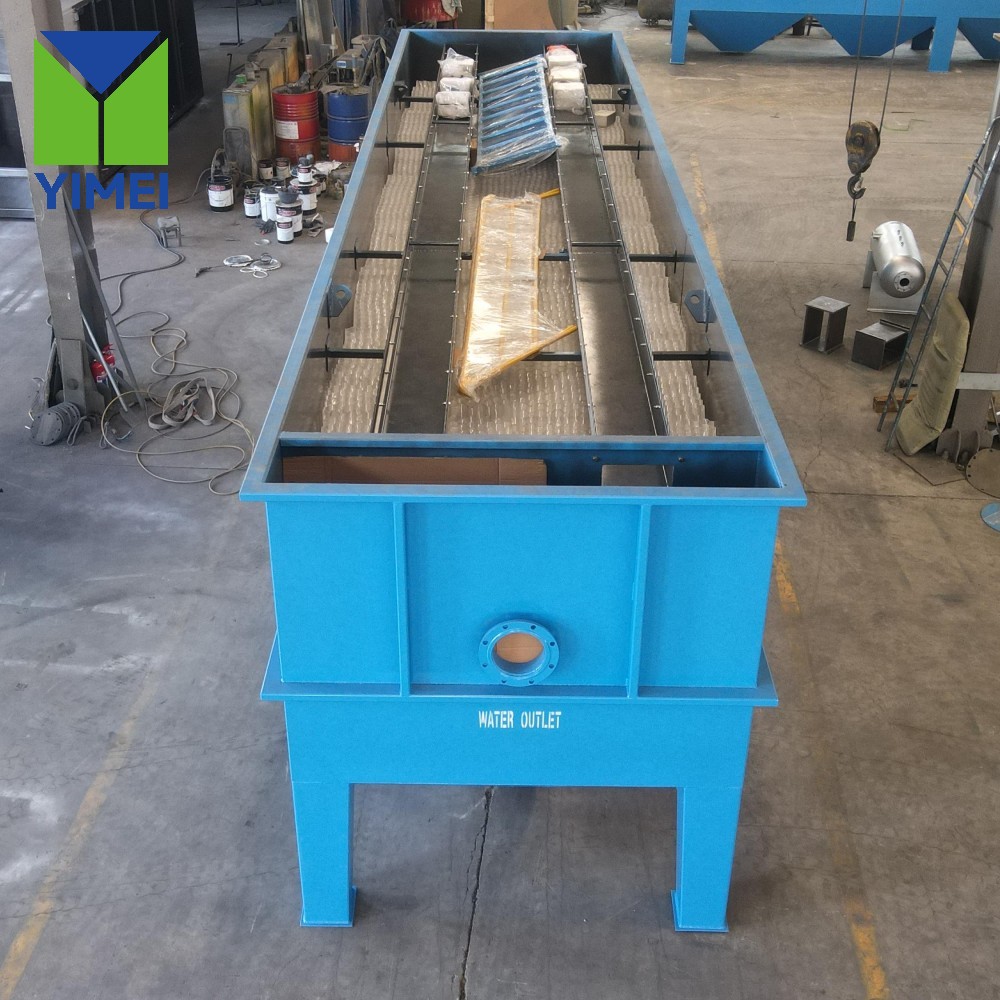

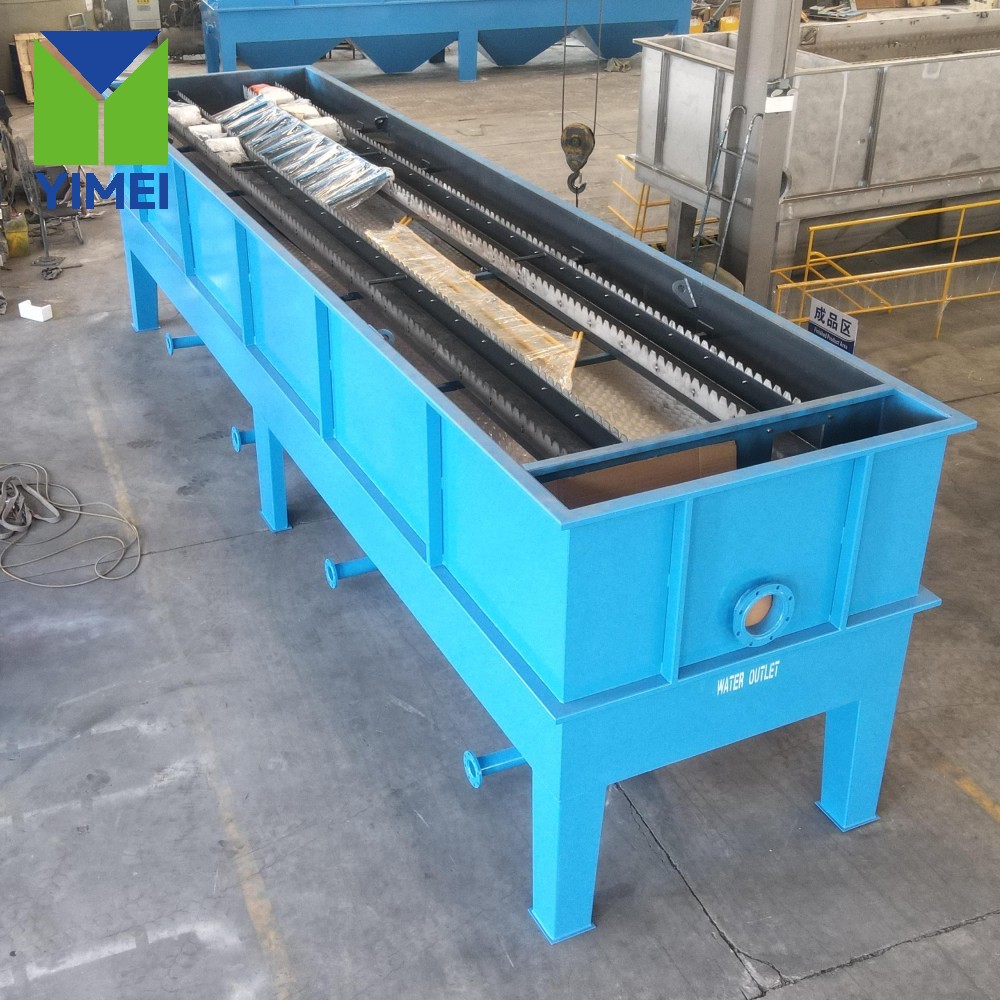

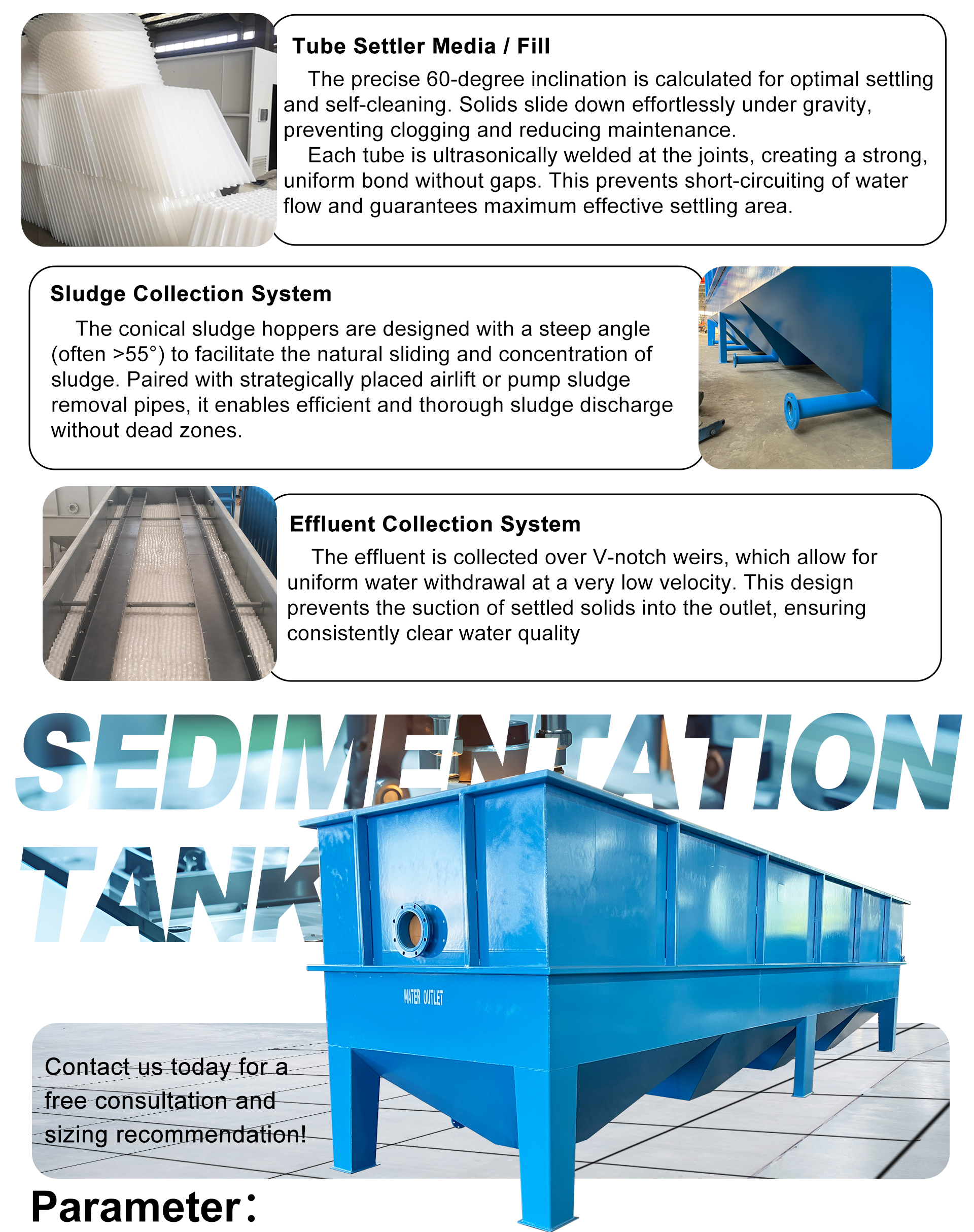

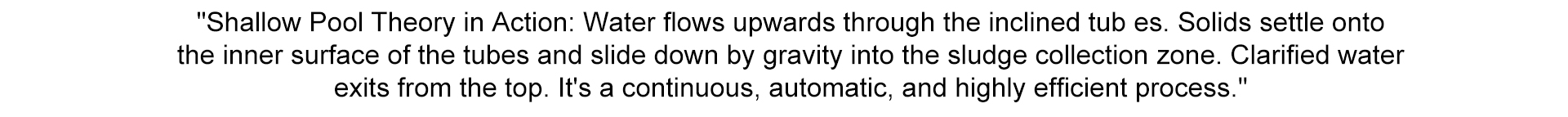

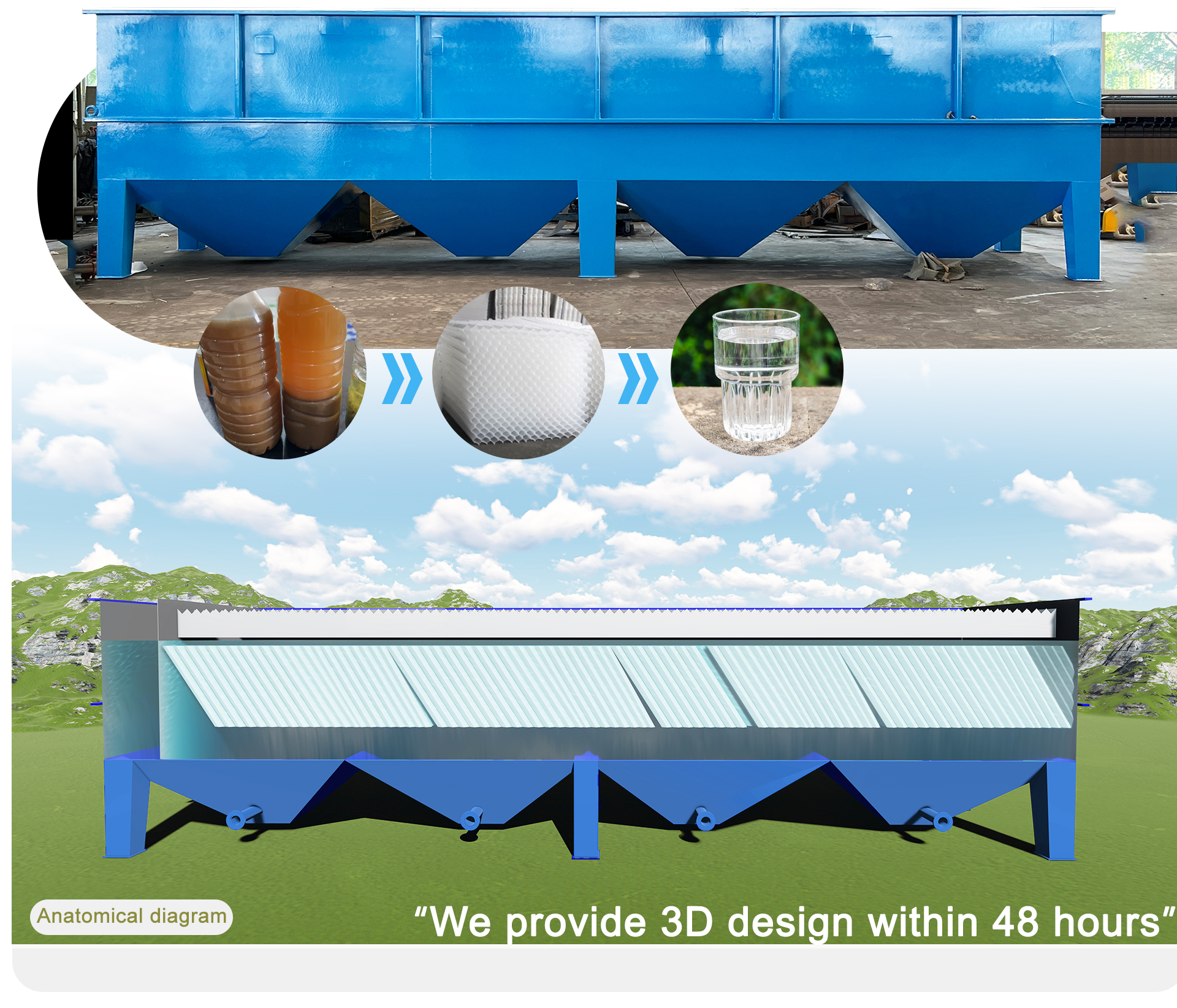

Utilizing closely spaced inclined plates (lamella), this clarifier dramatically increases the effective settling area. This High-Rate Lamella Design significantly shortens the settling path of particles, enabling Rapid Solids Separation and allowing it to handle much higher hydraulic loads compared to conventional clarifiers of the same size, maximizing treatment capacity.
2. Complete Packaged & Rapid Deployment

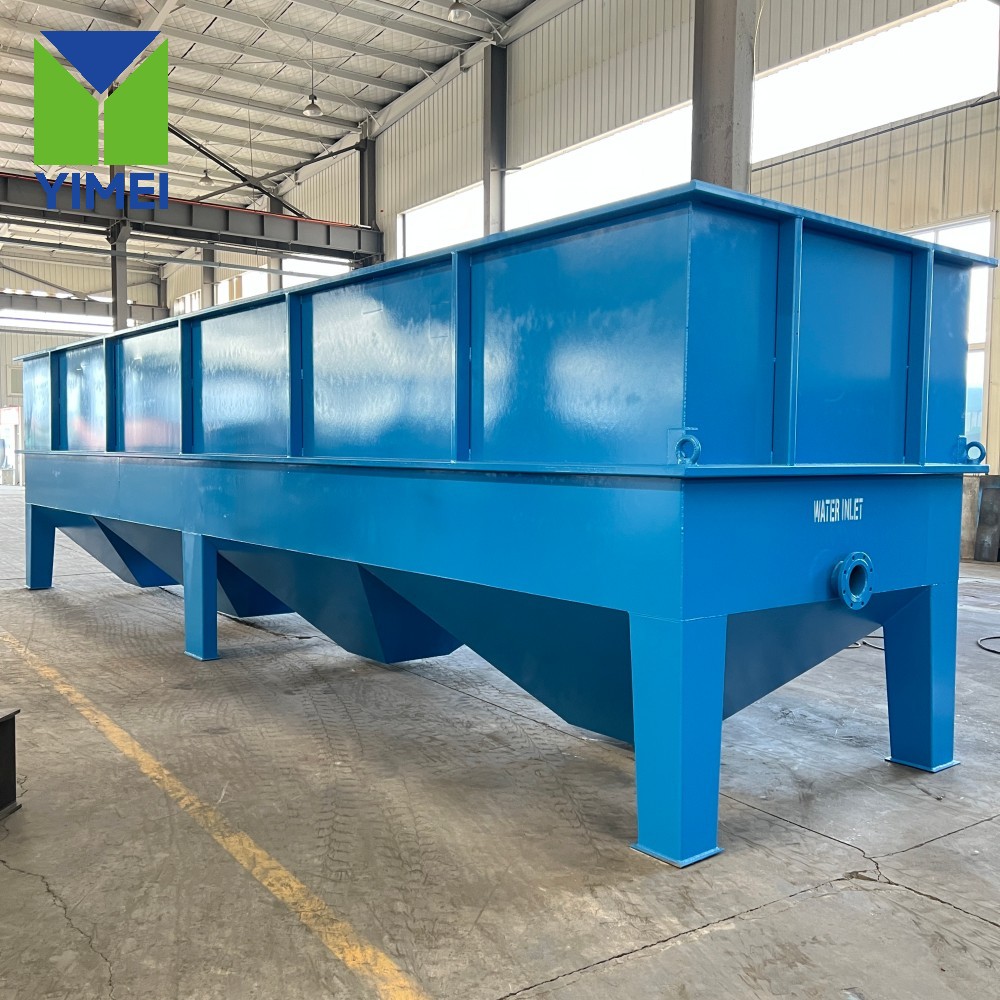

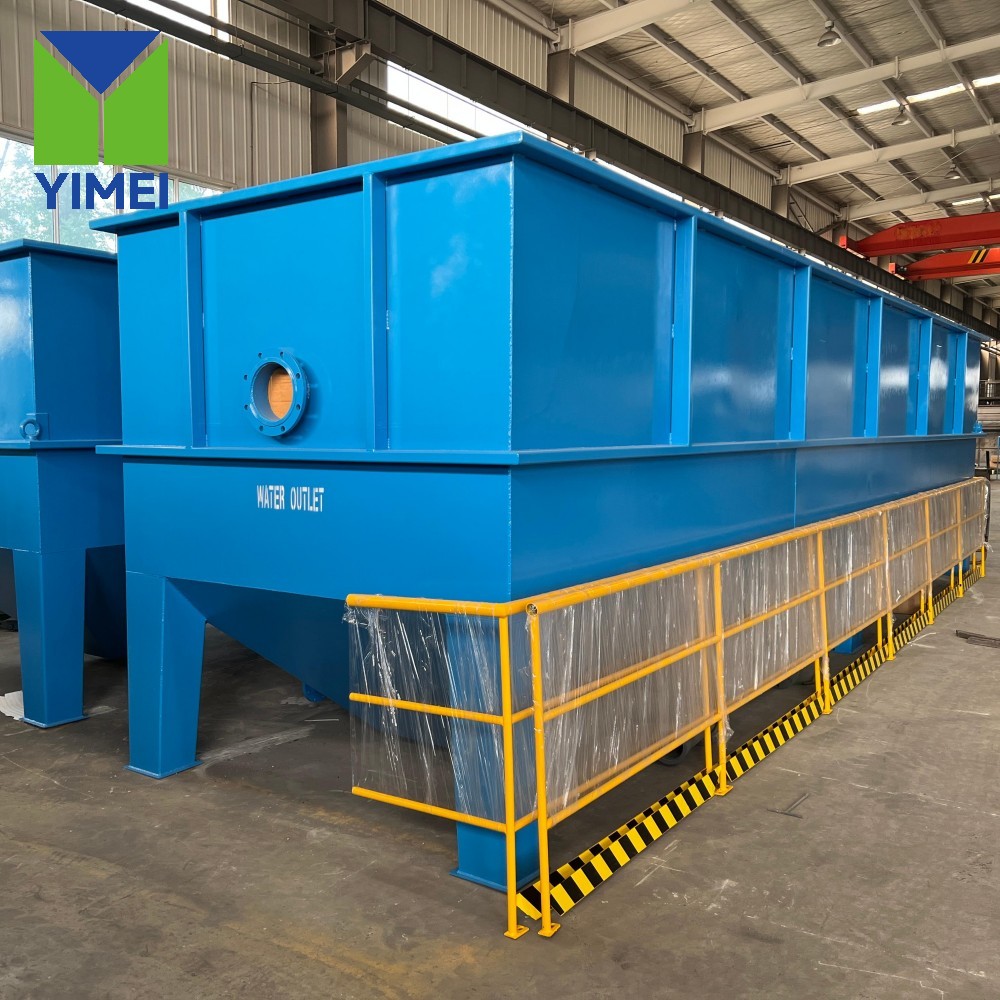

The system is supplied as a Fully Packaged Clarifier Unit, pre-assembled and factory-tested. This turnkey approach minimizes on-site construction work, leading to Fast Installation and Commissioning. It arrives ready for placement on a simple foundation, drastically reducing project timelines, labor costs, and installation complexity.
3. Durable & Corrosion-Resistant Fiberglass Construction
The main tank and critical components are crafted from High-Strength Fiberglass (FRP). This material offers exceptional Corrosion Resistance against a wide range of chemicals and wastewater, ensuring a long service life with minimal maintenance. Its lightweight nature simplifies transportation and handling while maintaining structural integrity.

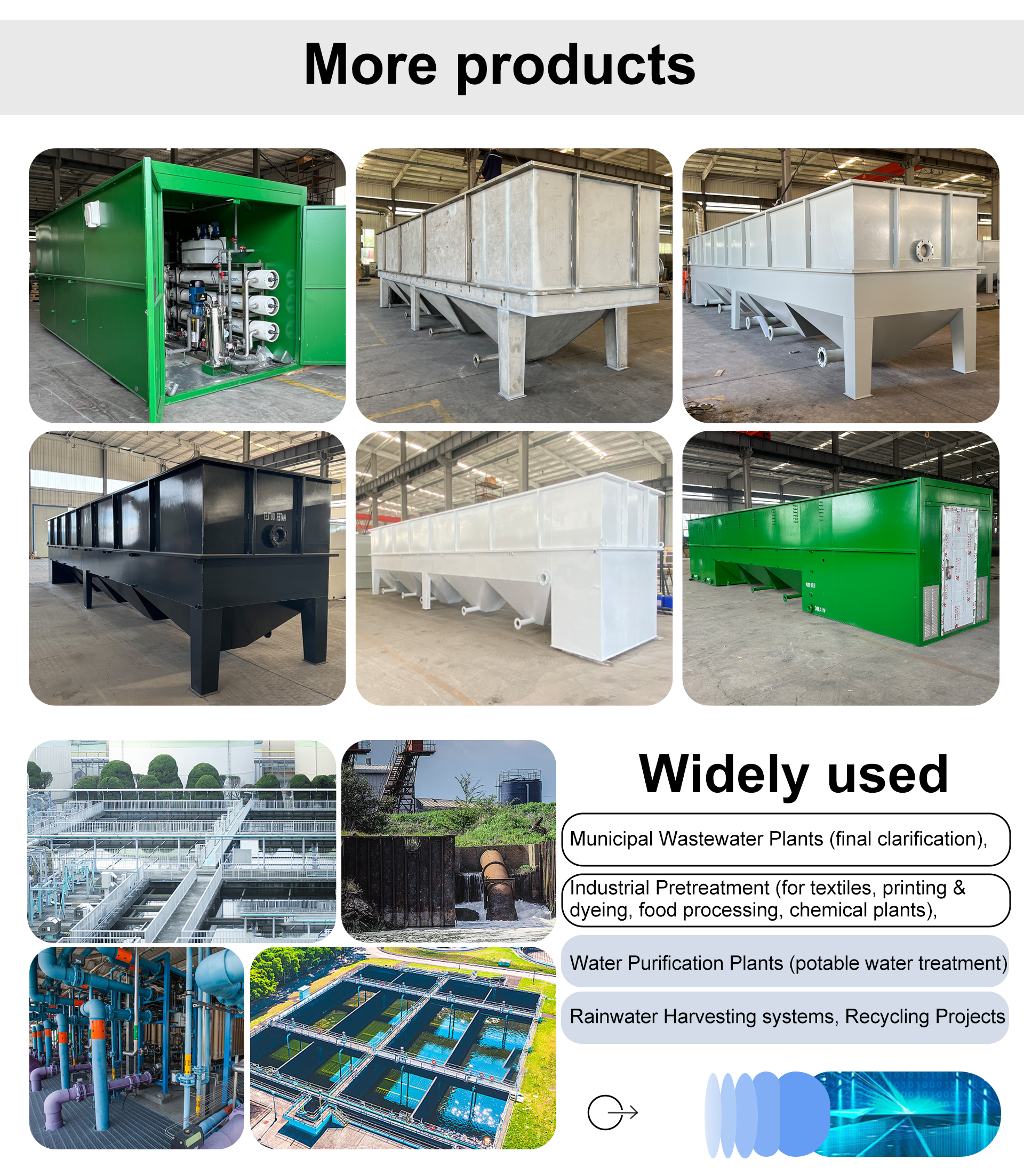

Application Scenarios
1. Industrial Wastewater Pretreatment
Ideal for removing suspended solids, metals, or precipitates from industrial effluents in sectors like mining, metal finishing, or chemical production before further treatment or discharge.
2. Compact Municipal & Decentralized Plants
Perfect for satellite treatment facilities, small communities, or plant upgrades where space is limited and a durable, low-maintenance clarifier is needed for primary or tertiary treatment.
3. Food & Beverage Processing
Effectively separates organic solids, fats, and greases from process water. The fiberglass construction is resistant to wash-down chemicals and acidic/alkaline conditions common in this industry.
4. Prefabricated Water Treatment Plants
Serves as a core clarification module within skid-mounted or containerized water treatment systems for potable water production or desalination pretreatment.
Product Parameters
Model | Area (m²) | Plate size (mm) | Cake thickness (mm) | Filter chamber volume (L) | Plate Qty (pcs) | Filtration pressure (Mpa) | Motor Power (Kw) | Weight (Kg) | Dimensions | Foundation Size(mm) | ||||||||||||||||||||
L | B | D | H | |||||||||||||||||||||||||||
X^Z100/1250-30UR | 100 | 1250×1250 | 30 | 1468 | 36 | ≥0.6 | 4.0 | 8307 | 5430×1900×1630 | 3970 | 850 | 1740 | 995 | |||||||||||||||||
X^Z120/1250-30UR | 120 | 1746 | 43 | 9308 | 5880×1900×1630 | 4430 | ||||||||||||||||||||||||
XZ150/1250-30UR | 150 | 2250 | 55 | 11000 | 6400×1900×1630 | 5210 | ||||||||||||||||||||||||
X^Z160/1250-30UR | 160 | 2341 | 58 | 11492 | 6860×1900×1630 | 5400 | ||||||||||||||||||||||||
XZ180/1250-30Uk | 180 | 2619 | 65 | 12494 | 7315×1900×1630 | 5860 | ||||||||||||||||||||||||
X^Z200/1250-30U& | 200 | 2896 | 72 | 13504 | 7770×1900×1630 | 6310 | ||||||||||||||||||||||||
X^Z220/1250-30Uk | 220 | 3214 | 80 | 14652 | 8290×1900×1630 | 6830 | ||||||||||||||||||||||||
X^Z250/1250-30UR | 250 | 3650 | 91 | 16227 | 9010×1900×1630 | 7550 | ||||||||||||||||||||||||
X^Z200/1500-35Uk | 200 | 1500×1500 | 35 | 3500 | 49 | ≥0.6 | 11 | 20030 | 6570×2200×1820 | 5250 | 1170 | 1990 | 1070 | |||||||||||||||||
X^Z250/1500-35Uk | 250 | 4375 | 61 | 22978 | 7395×2200×1820 | 6090 | ||||||||||||||||||||||||
X^Z300/1500-35Uk | 300 | 5250 | 74 | 26026 | 8300×2200×1820 | 6990 | ||||||||||||||||||||||||
XMZ350/1500-35Uk | 350 | 6125 | 86 | 29220 | 9120×2200×1820 | 7840 | ||||||||||||||||||||||||
X^Z400/1500-35Uk | 400 | 7000 | 99 | 32574 | 10050×2200×1820 | 8750 | ||||||||||||||||||||||||
X^Z450/1500-35Uk | 450 | 7875 | 111 | 35586 | 10860×2200×1820 | 9590 | ||||||||||||||||||||||||
X^Z500/1500-35Uk | 500 | 8750 | 123 | 38606 | 11730×2200×1820 | 10430 | ||||||||||||||||||||||||
X^Z600/2000-40Uk | 600 | 2000×2000 | 40 | 12000 | 85 | ≥0.6 | 15 | 49000 | 11100×3000×2500 | 9200 | 1660 | 2000 | 1050 | |||||||||||||||||
X^Z700/2000-40Uk | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | 10300 | ||||||||||||||||||||||||
X^Z800/2000-40Uk | 800 | 16000 | 113 | 57000 | 13350×3000×2500 | 1450 | ||||||||||||||||||||||||
X^Z900/2000-40Uk | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | 12600 | ||||||||||||||||||||||||
X^Z1000/2000-40U& | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 | 13830 | ||||||||||||||||||||||||
FAQ
Q: What is the typical installation and commissioning timeline?
A: As a pre-engineered Compact Lamella Clarifier, installation is swift—mainly involving placement, leveling, and connection. Commissioning can typically be completed within a few days to weeks.
Q: How skilled do operators need to be?
A: The system is designed for easy operation . We provide comprehensive manuals and training. Basic routine checks are sufficient for daily operation.
Q: Can it handle high-temperature or corrosive wastewater?
A: Yes. The Stainless Steel Lamella Clarifier variant offers excellent corrosion resistance. The inclined plates are made of chemically resistant polymers (PP/PVC) suitable for a wide pH range.
Q: What maintenance does it require?
A: Maintenance is minimal. The non-clogging design of the inclined plates (with a 60° angle) prevents sludge adhesion. Periodic sludge discharge and occasional visual inspection are typically sufficient.
Q: Do you offer overseas technical support?
A: Yes. We provide 24-hour online support , video technical guidance , and optional overseas installation and operation services .
