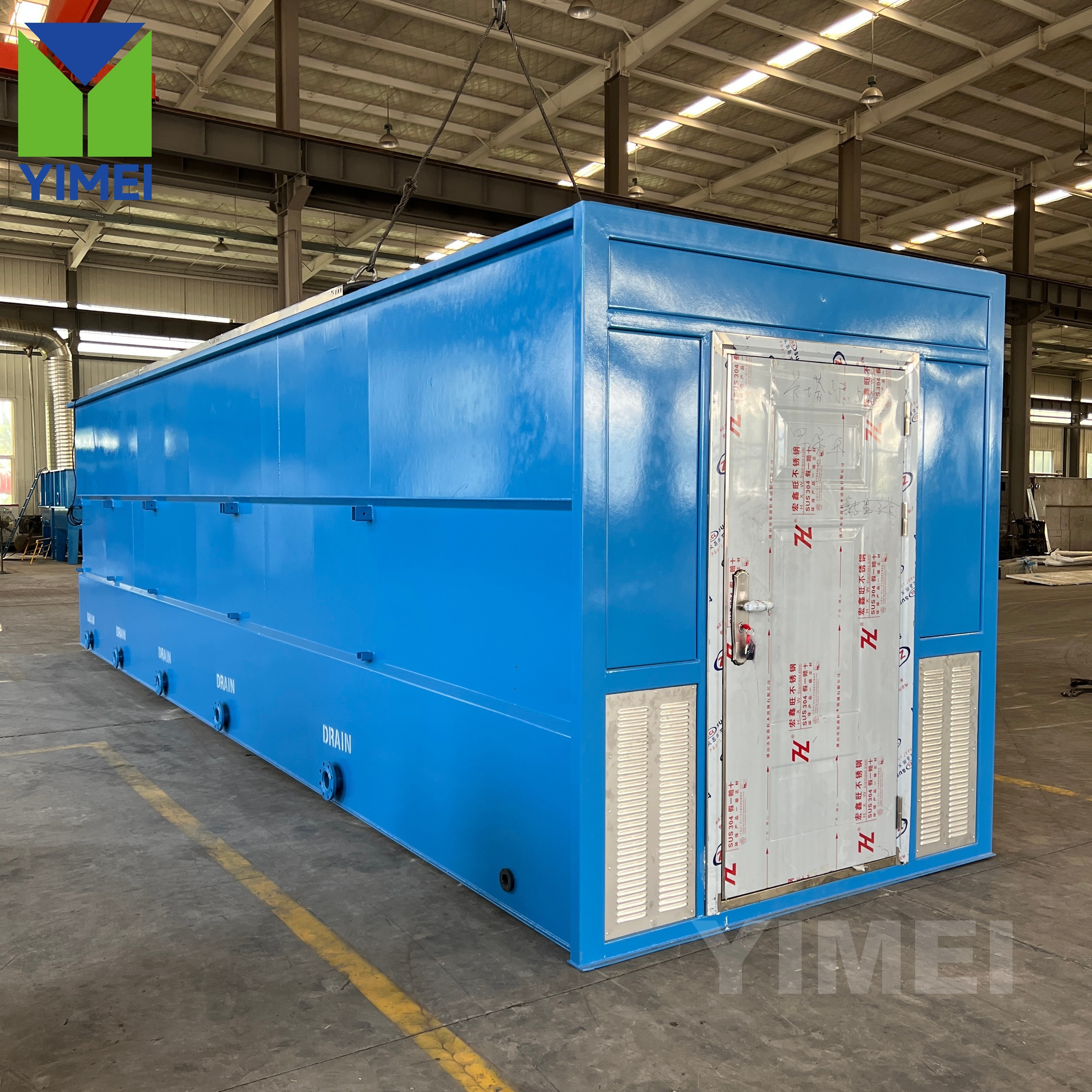

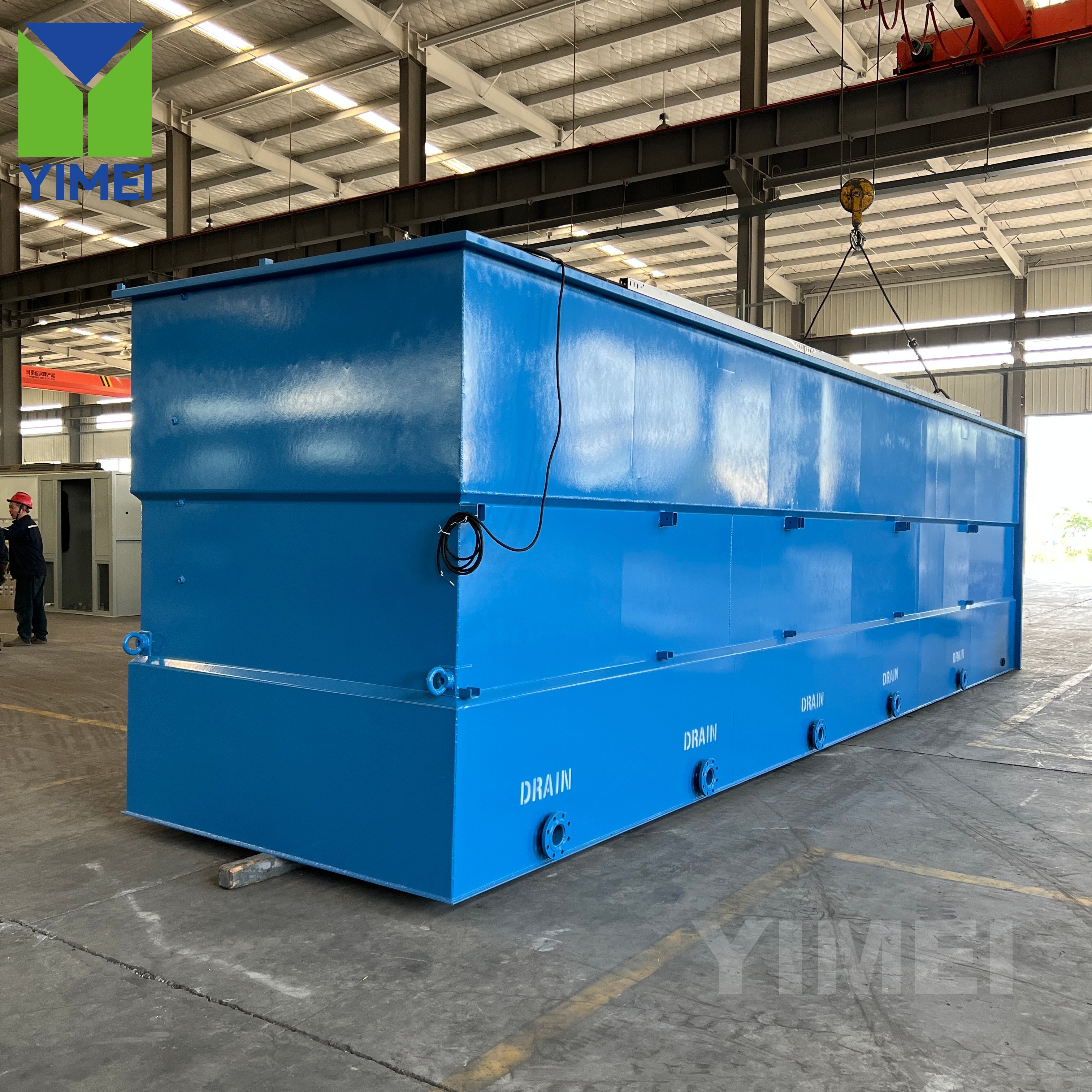

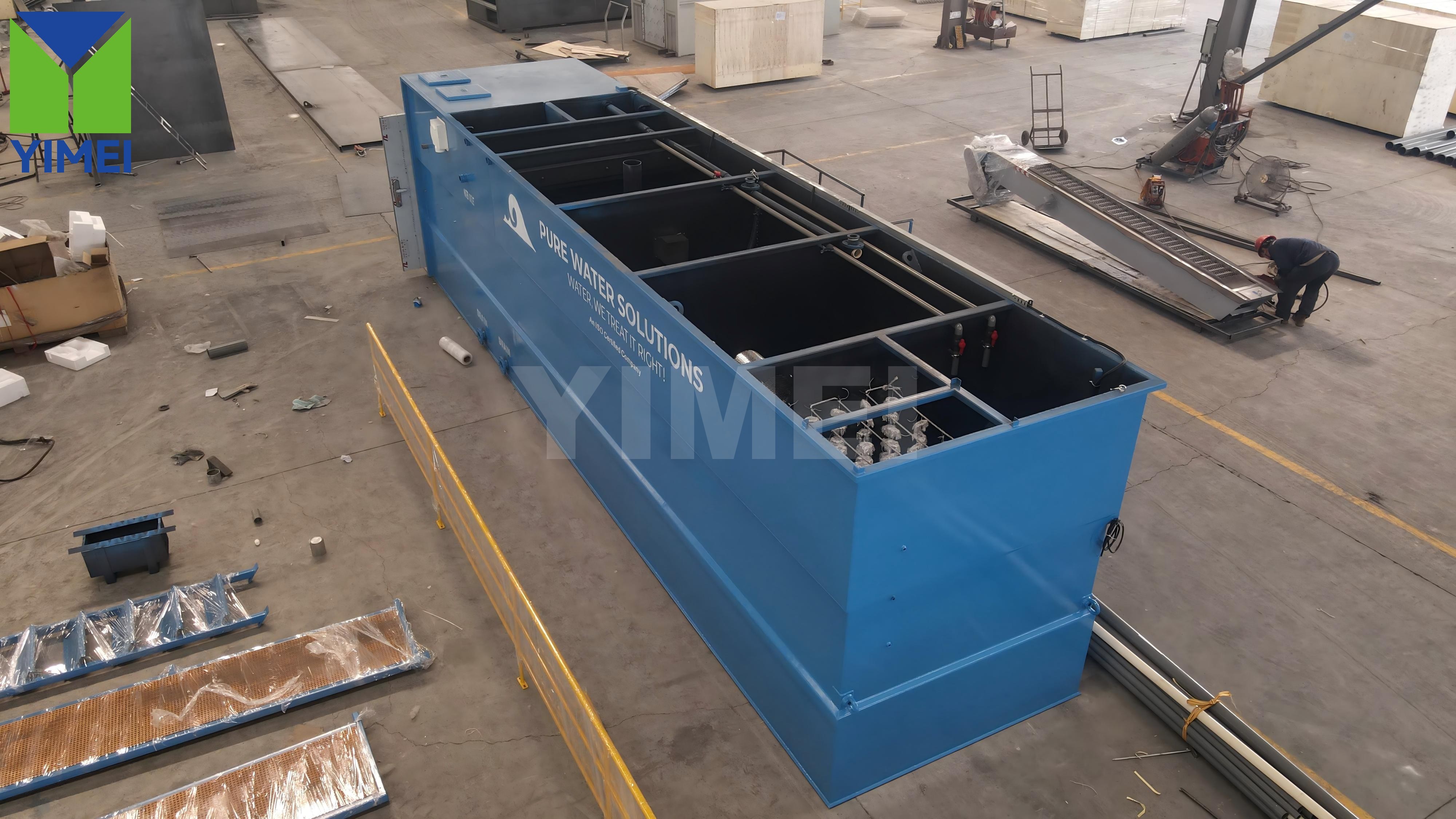

We are excited to introduce our blue integrated wastewater treatment system – a compact, high‑performance unit featuring MBBR technology and biofilm media as its core biological treatment stage. The distinctive blue exterior not only provides excellent corrosion resistance but also gives the equipment a clean, professional appearance suitable for modern facilities.
This blue integrated system is designed for decentralized wastewater treatment applications, including residential communities, resorts, industrial parks, and small municipalities. All treatment processes are housed within a single, pre‑assembled structure, minimizing site work and reducing installation time.
Core Biological Treatment: MBBR with Biofilm Media
The heart of the system is the Moving Bed Biofilm Reactor (MBBR) , which utilizes high‑surface‑area biofilm media – also known as 挂膜填料. These specially engineered carriers provide an ideal environment for beneficial bacteria to attach and grow, forming a dense, active biofilm. As the media moves freely within the reactor, the biofilm comes into continuous contact with the wastewater, efficiently degrading organic matter (BOD/COD) and removing nutrients.
Advantages of MBBR with Biofilm Media:
✅ High biomass concentration – The large surface area of the media (typically 500–800 m²/m³) supports a robust microbial population, enabling high treatment efficiency in a compact footprint.
✅ Resilience to shock loads – The biofilm is less sensitive to fluctuations in flow or organic load compared to conventional activated sludge systems.
✅ No sludge bulking – Unlike suspended growth systems, MBBR eliminates settling issues, ensuring stable effluent quality.
✅ Low maintenance – No media replacement is needed for many years; the self‑cleaning action of moving media prevents clogging.
✅ Easy retrofitting – Existing tanks can be converted to MBBR by adding media and aeration.

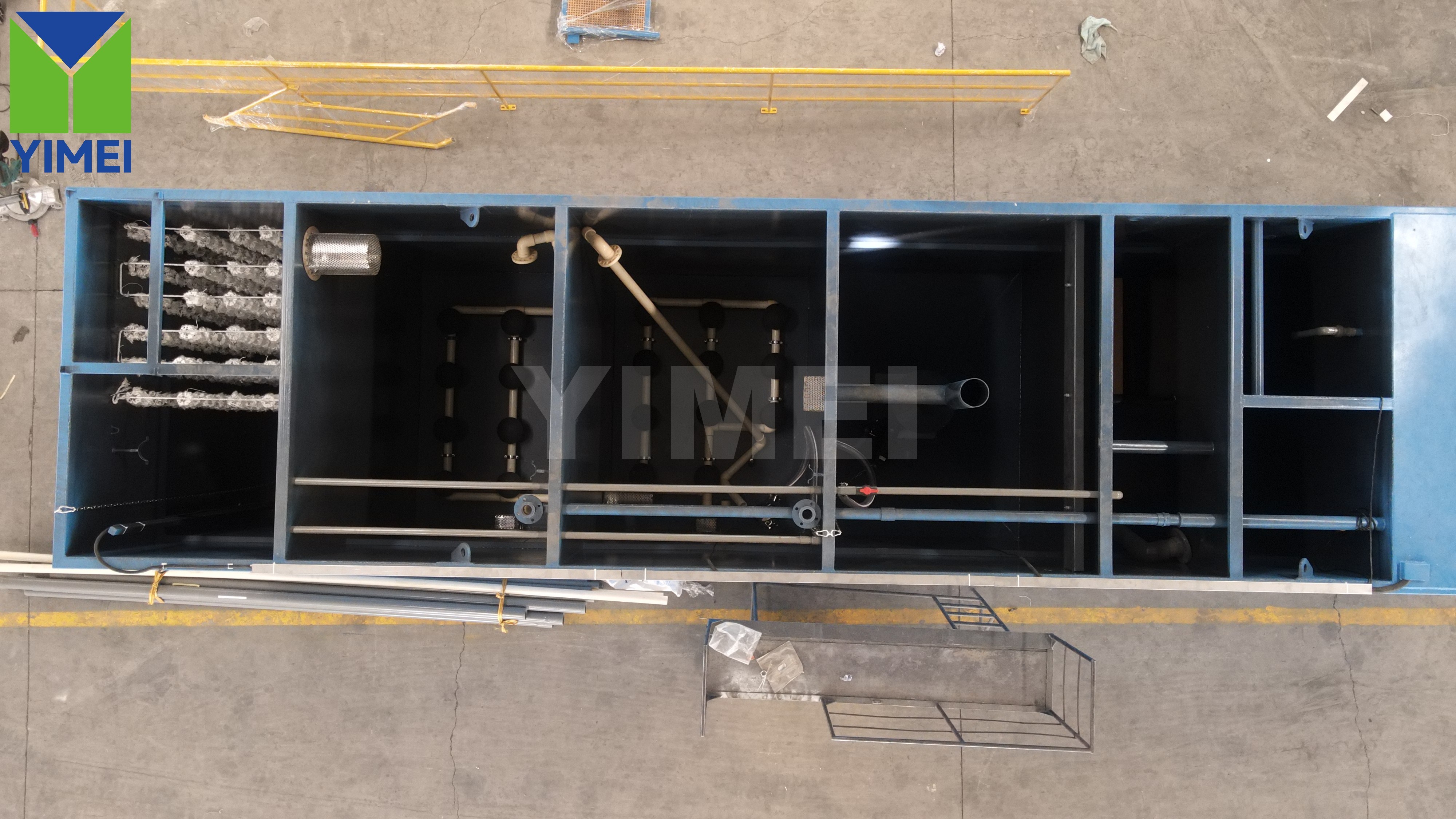

Complete Treatment Process
The blue integrated system typically includes:
Pretreatment – Mechanical bar screen or drum screen to remove large solids.
Equalization tank – Balances flow and load fluctuations.
MBBR reactor – Packed with high‑quality biofilm media, aerated by fine bubble diffusers.
Clarification – Tube settler or plate separator for solid‑liquid separation.

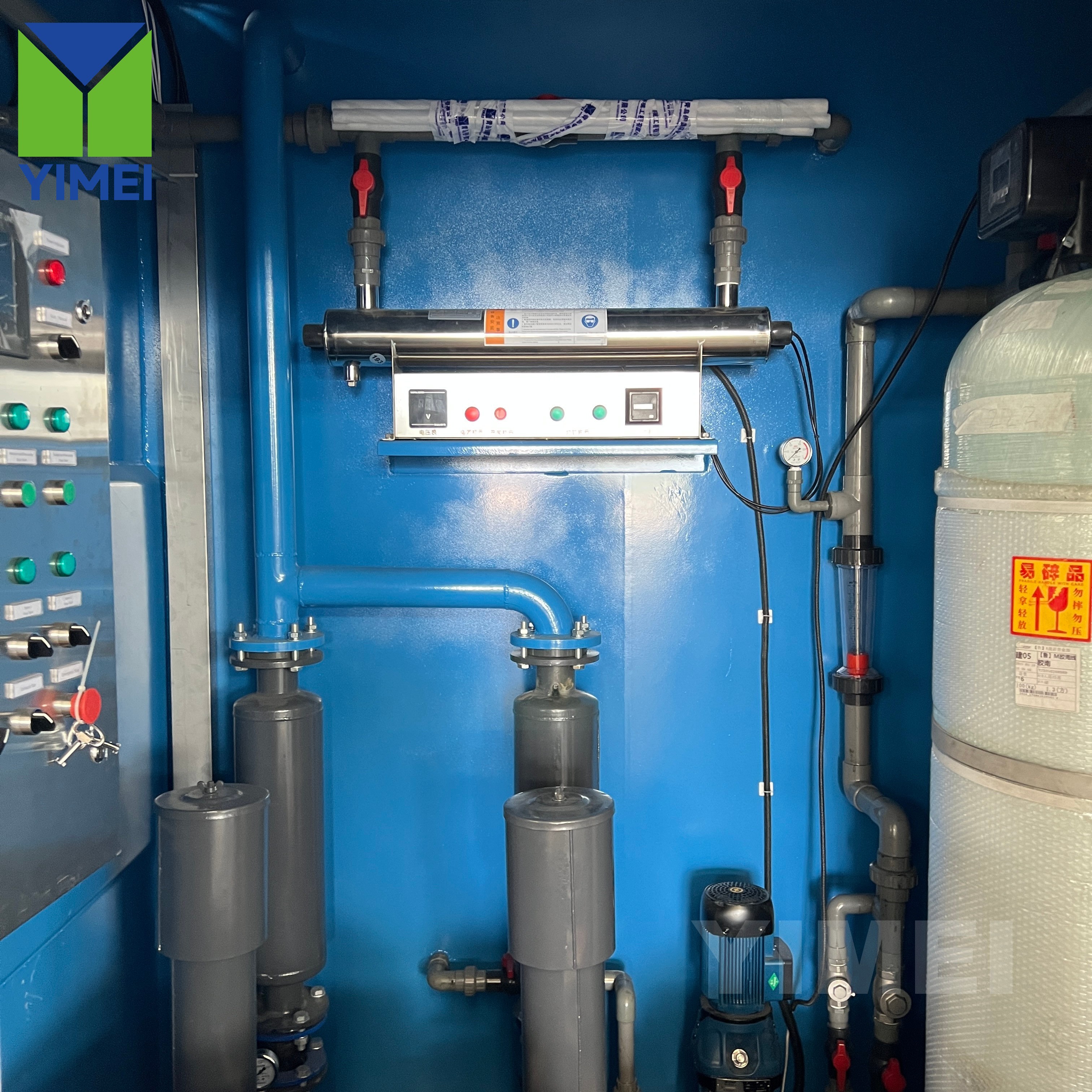

Disinfection – Optional UV or chlorine for pathogen removal.
Filtration – Multimedia filter for final polishing.
Key Features of Our Blue Integrated System:
Corrosion‑resistant blue coating – Suitable for outdoor installation in various climates.
Modular design – Easy to transport and expand as needs grow.
Factory pre‑assembled – Reduces on‑site construction time by up to 60%.

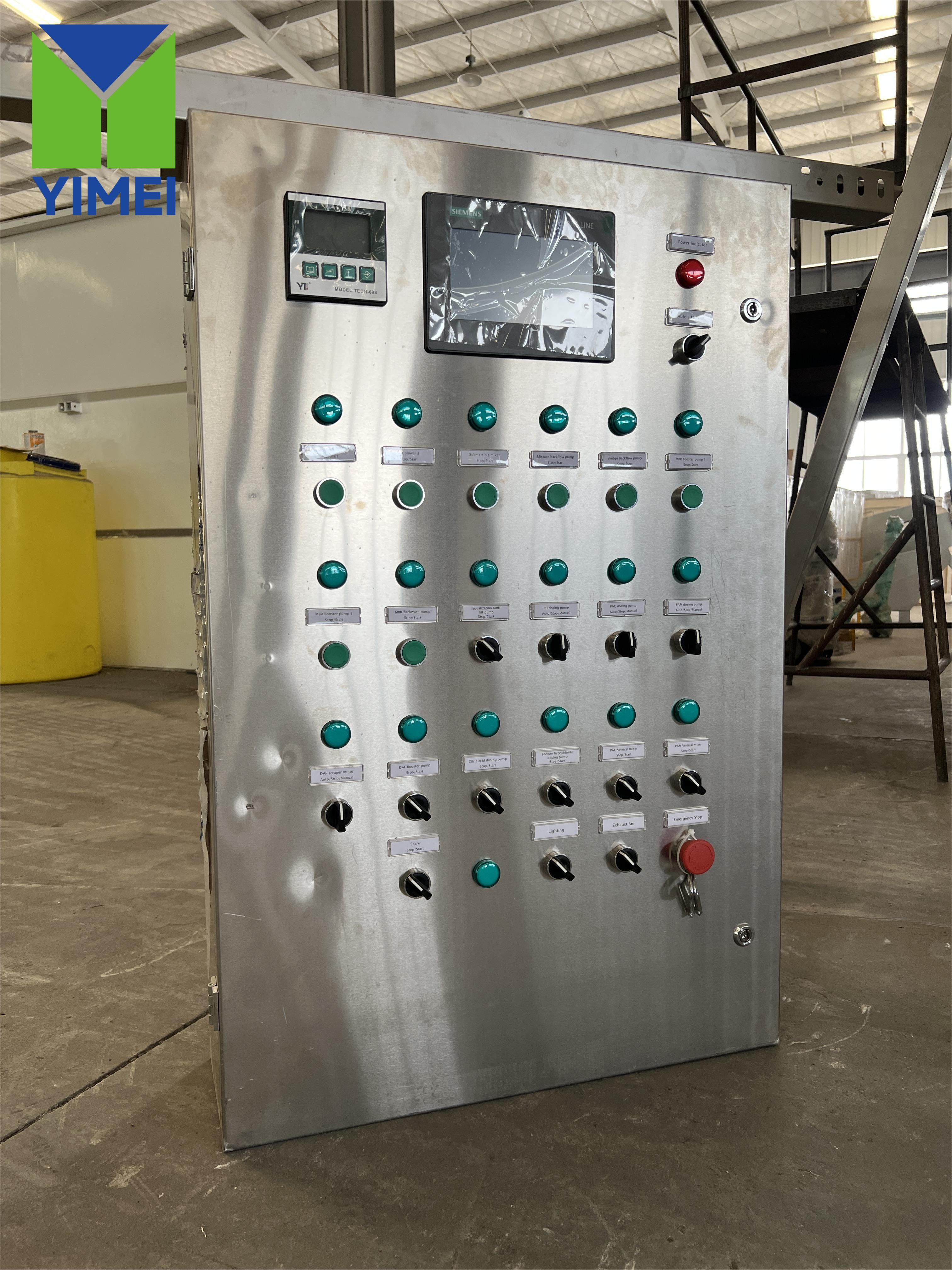

Automated control – PLC panel with remote monitoring capability.
Low energy consumption – Optimized aeration and mixing save power.
Applications:
Domestic sewage treatment for small to medium communities
Industrial wastewater from food and beverage, textile, or chemical plants
Resort and hotel wastewater treatment
Leachate treatment from landfills (in combination with other processes)
Technical Specifications (Typical):
Parameter | Value |
|---|---|
Treatment capacity | 10 – 500 m³/day (customizable) |
MBBR media fill ratio | 30–50% of reactor volume |
Effluent BOD/COD | < 10 mg/L / < 50 mg/L |
Overall dimensions | Depends on capacity |
Material | Carbon steel with blue epoxy coating or stainless steel |
Why Choose Our Blue Integrated System?
We combine robust MBBR technology with high‑quality biofilm media to deliver reliable, consistent treatment performance. Every system is engineered to meet local discharge standards and can be tailored to specific site conditions. The distinctive blue finish is not just aesthetic – it represents our commitment to quality and durability.
For more information about our blue integrated wastewater treatment system or to discuss your project requirements, please contact our team.
