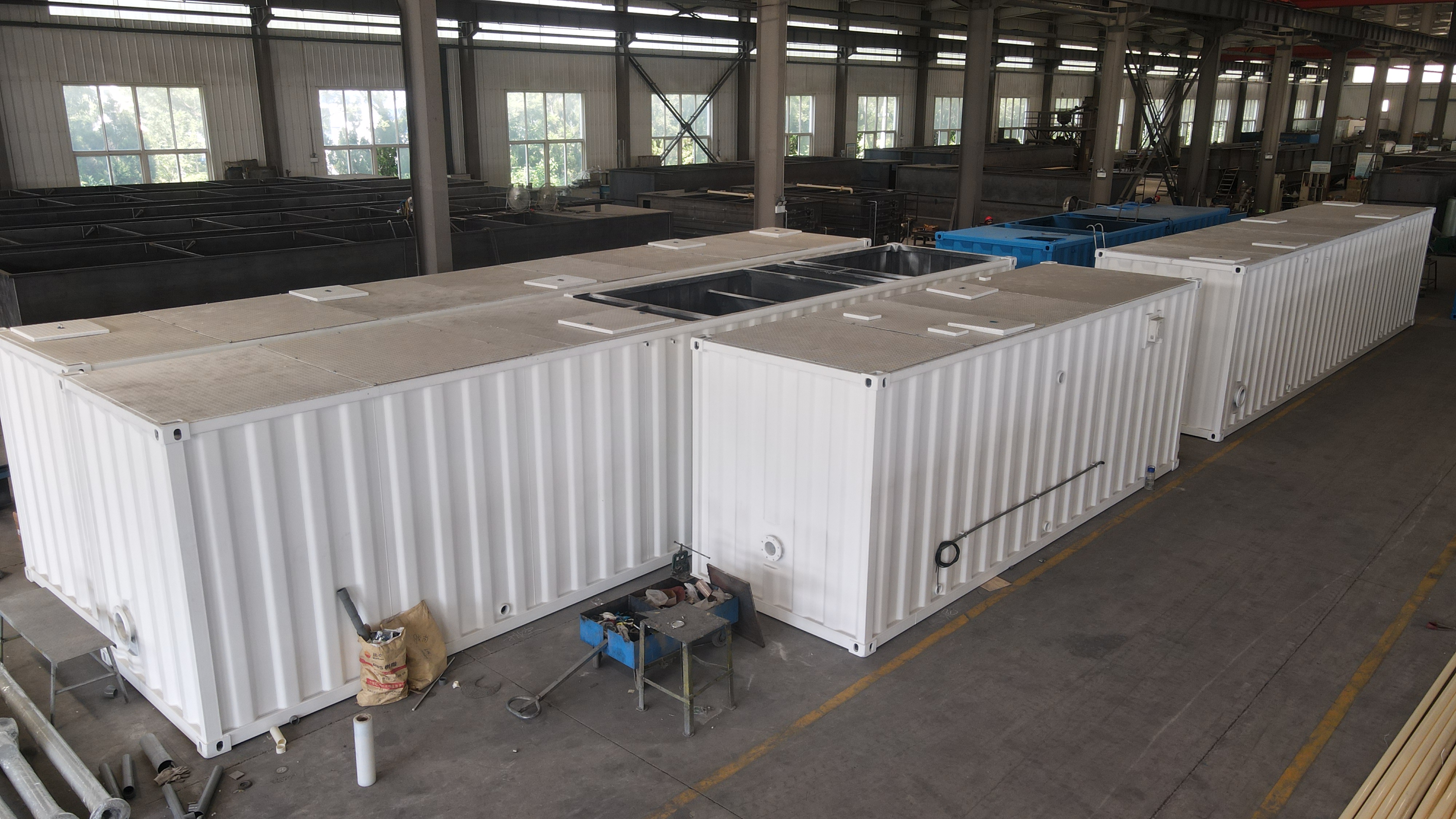

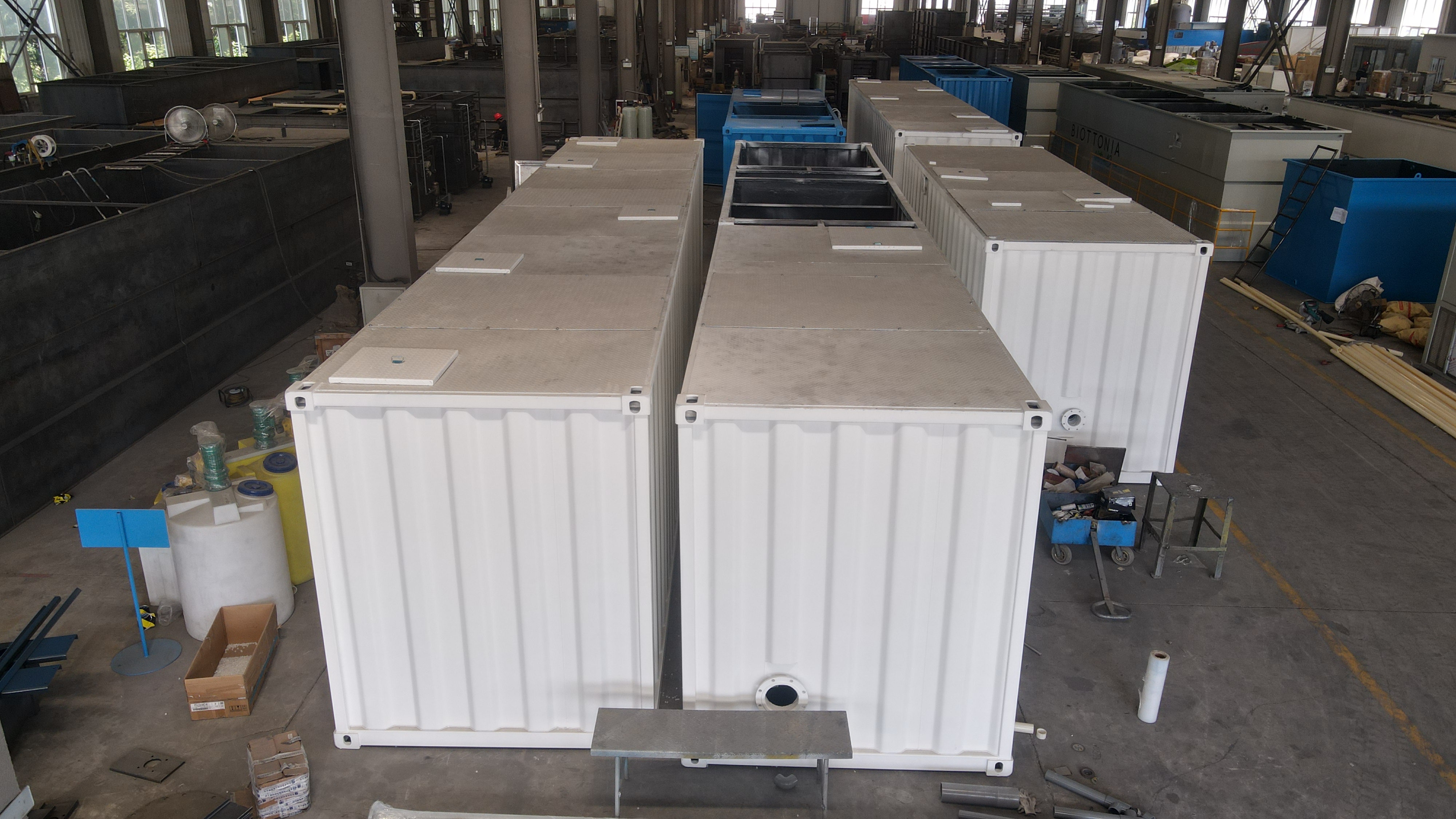

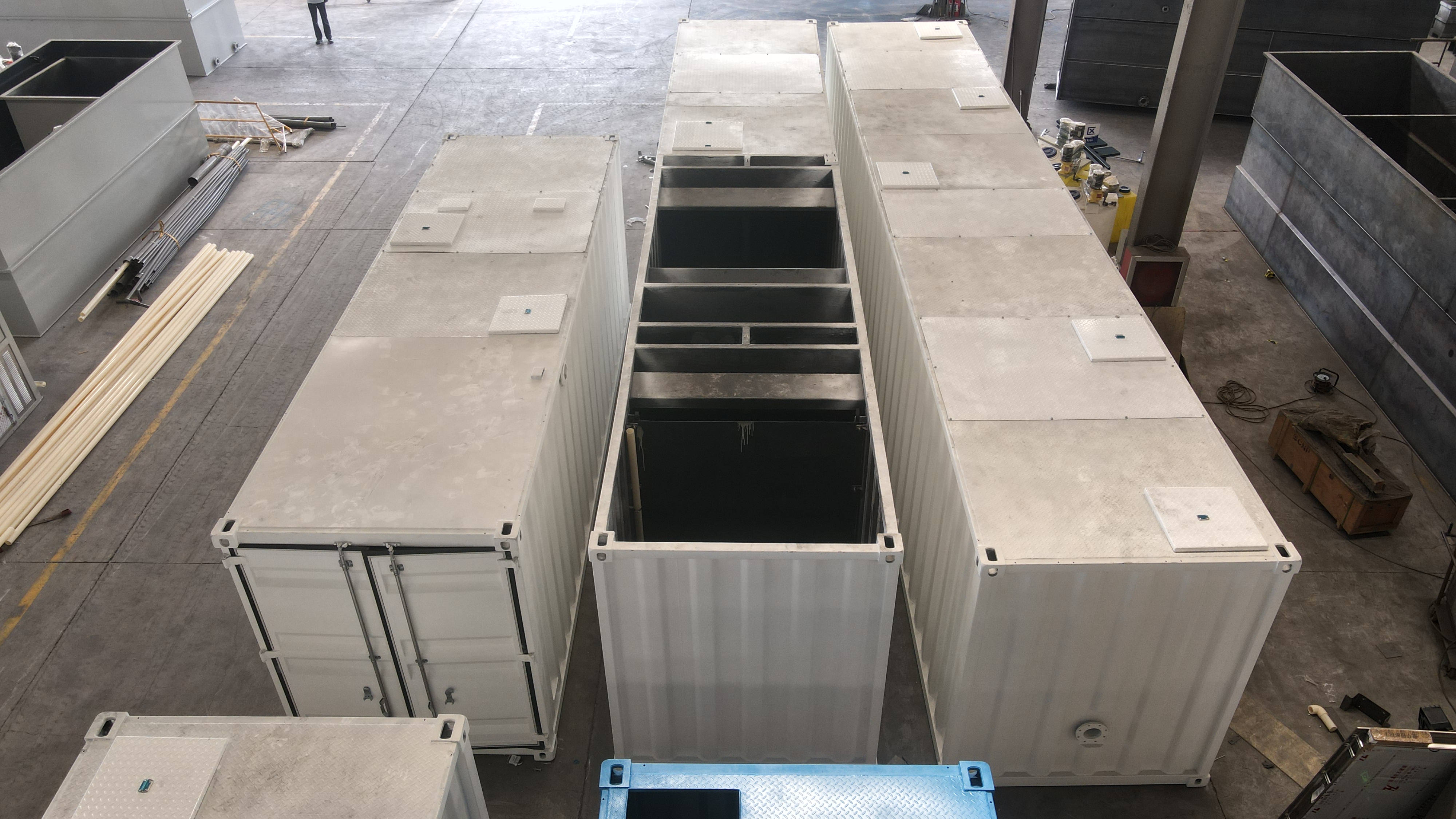

We are pleased to announce the successful shipment of a corrugated integrated wastewater treatment system to our client in Côte d'Ivoire. Designed to handle 300 cubic meters per day, this compact unit combines tube settler clarification, DAF, MBBR with biofilm media, and multimedia filtration into a single durable package — ideal for decentralized industrial and municipal applications.

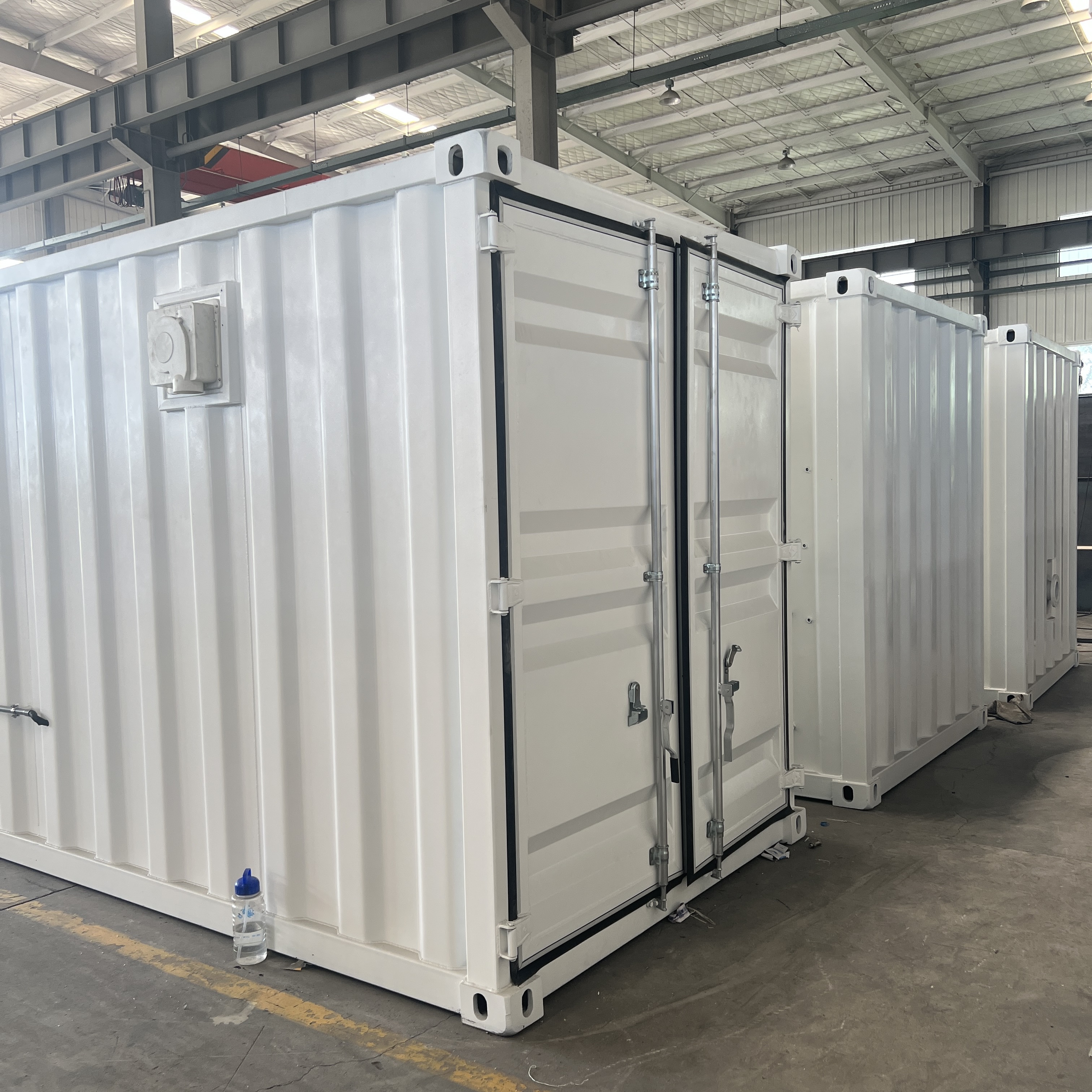

The system features a distinctive corrugated exterior, which not only provides enhanced structural strength but also offers superior corrosion resistance in West Africa’s tropical climate. This robust construction ensures long-term durability while maintaining a compact footprint suitable for space-constrained sites.
Comprehensive Treatment Process:
1. Tube Settler (Inclined Plate Clarifier) – Influent first enters the tube settler zone, where inclined plates create multiple parallel settling channels. This design significantly increases effective settling area, allowing rapid removal of suspended solids under high hydraulic loads. The sludge collects at the bottom for easy discharge, while clarified water proceeds to the next stage.
2. Dissolved Air Flotation (DAF) – Following primary clarification, the DAF unit generates millions of microbubbles that attach to remaining suspended solids, oils, and grease. These particles float to the surface for skimming, providing high-efficiency polishing before biological treatment.
3. MBBR with Biofilm Media – The core biological stage utilizes MBBR technology with high-surface-area biofilm carriers. These specially designed media host a dense, active microbial community that efficiently degrades organic matter (BOD/COD) and nutrients. The MBBR process is known for its resilience to load fluctuations, minimal maintenance, and compact footprint.
4. Multimedia Filtration – The final stage passes treated water through a multimedia filter, capturing any remaining particulates to ensure effluent quality meets stringent discharge or reuse standards.
Integrated Control & Automation:

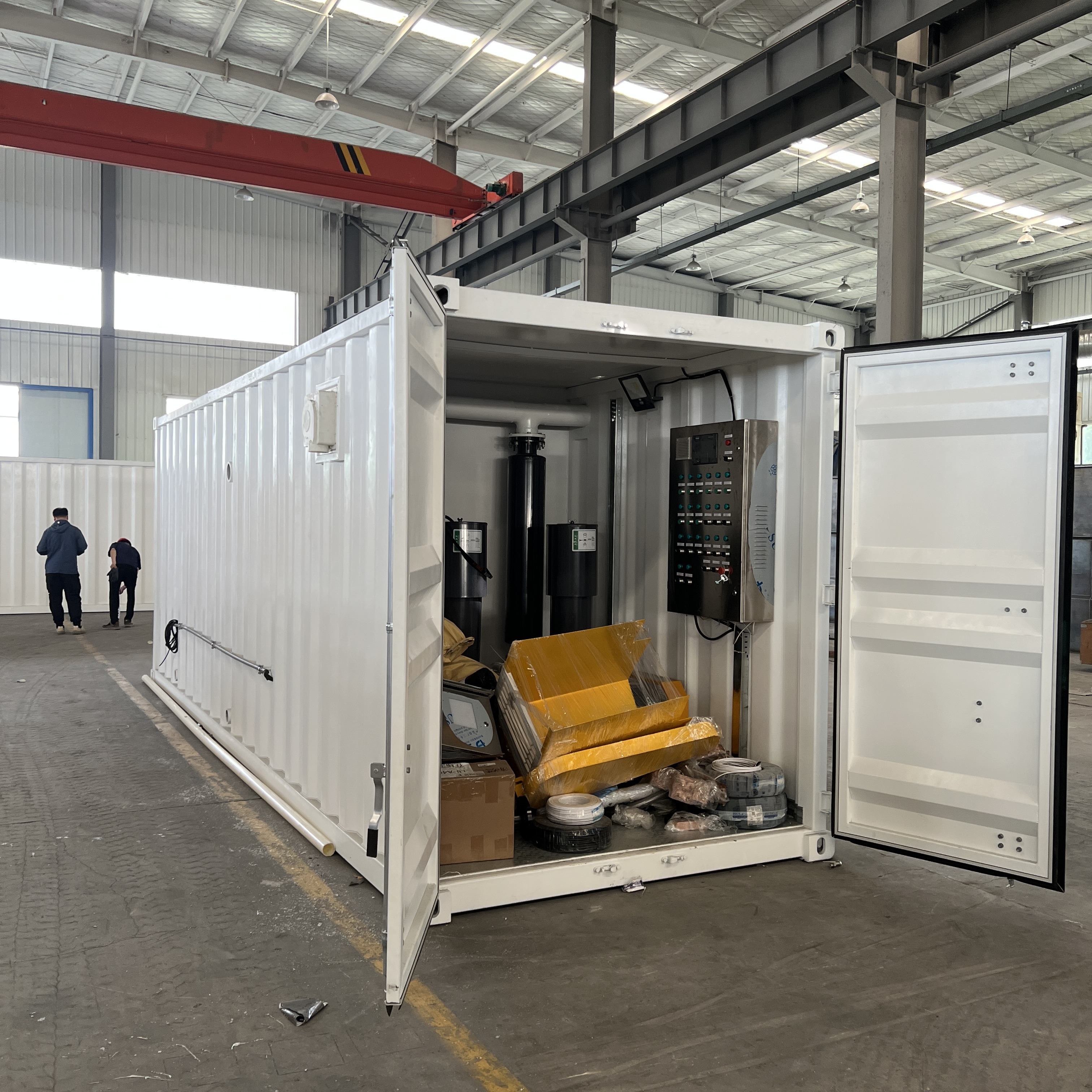

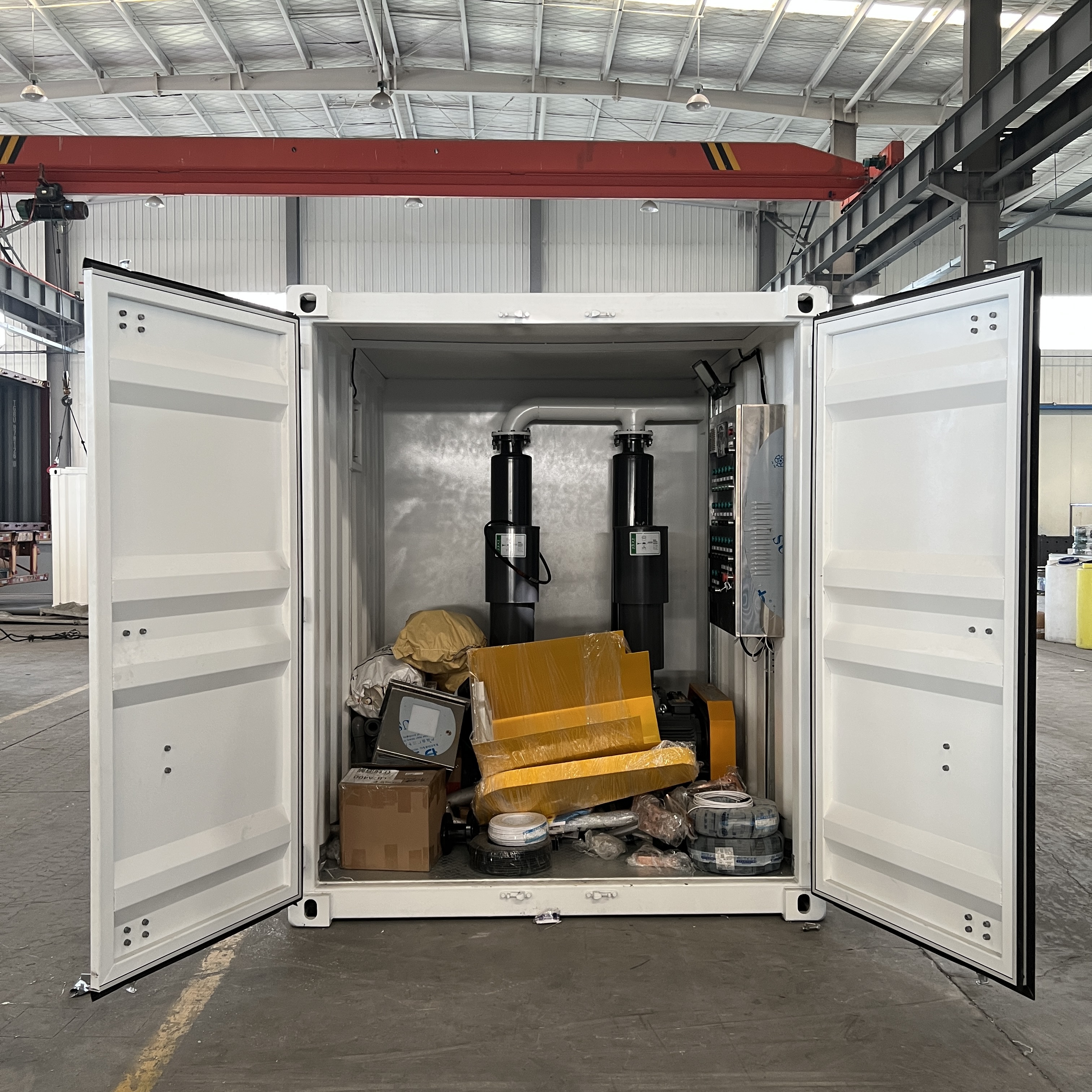

The entire system is managed by an automated control panel, providing reliable operation with minimal operator intervention. Key parameters such as flow rates, aeration cycles, and chemical dosing are continuously monitored to maintain consistent performance.
Why the Corrugated Integrated System is Ideal for Côte d'Ivoire:
✅ Compact footprint – All processes housed in one unit, saving valuable space
✅ Corrugated stainless steel exterior – Enhanced strength and corrosion resistance for tropical climates
✅ Plug-and-play design – Factory pre-assembled and tested for rapid on-site installation
✅ Proven technologies – Tube settler, DAF, MBBR, and filtration combined for complete treatment
✅ Low maintenance – Automated operation reduces the need for constant on-site supervision
This 300 m³/day system is perfectly suited for applications such as small municipalities, resorts, industrial parks, and residential communities — addressing Côte d'Ivoire’s growing need for decentralized, reliable wastewater infrastructure.
We look forward to supporting our client through installation and commissioning, and to delivering a sustainable solution that protects local water resources and supports community development.
For more information about our corrugated integrated systems or to discuss your next project, please contact our team.
