Advanced Three-Stage Preparation Process

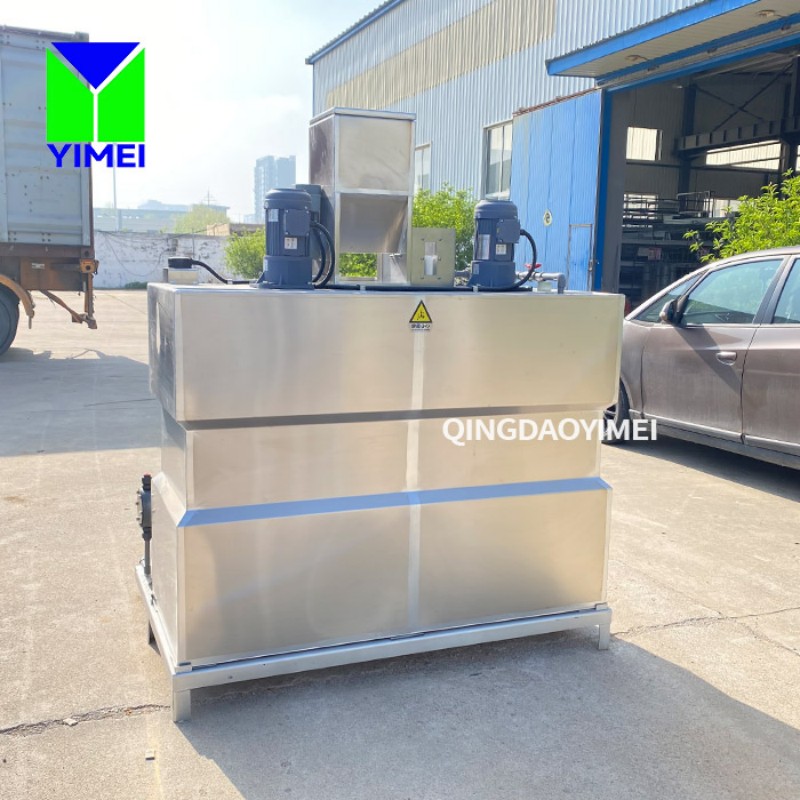

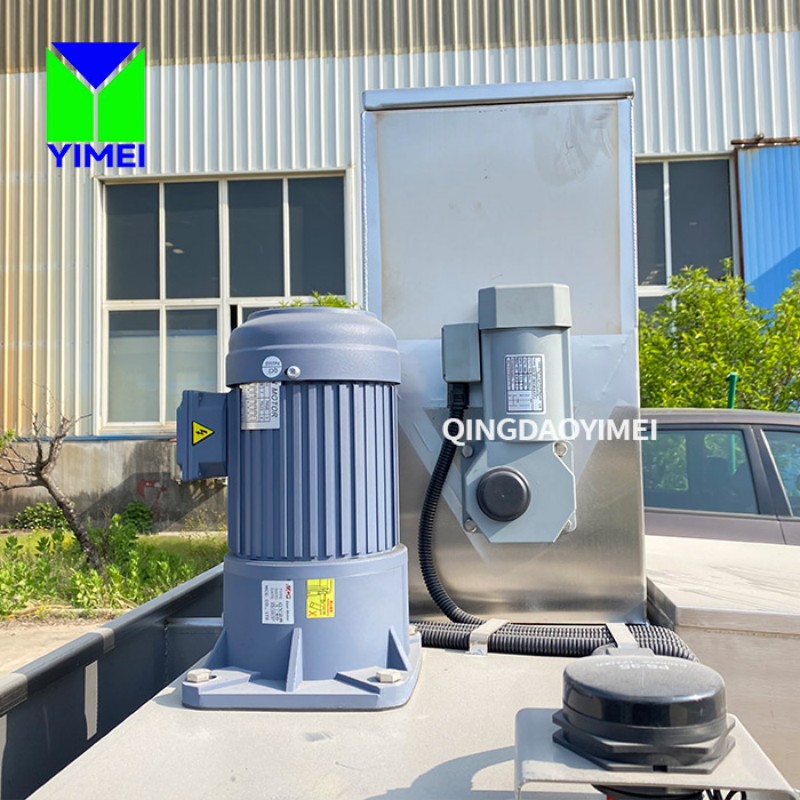

The system features a sophisticated three-cavity design, comprising a preparation tank, maturing tank, and dosing tank. This Multi-Chemical Automatic Dosing System is capable of handling both solid powders and liquid concentrates. The process begins with precise dry powder feeding via a heated screw conveyor, followed by jet mixing for pre-wetting, and culminates in a controlled maturation phase, guaranteeing a consistently high-quality chemical solution with a concentration accuracy of 0.1-0.5%.
Intelligent PLC Control & Robust Skid Design

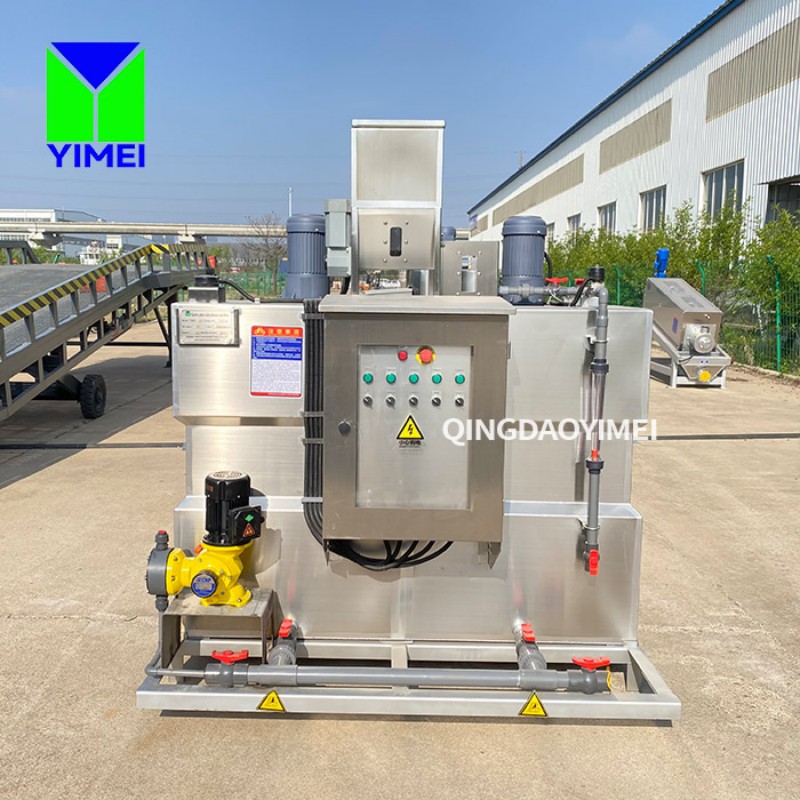

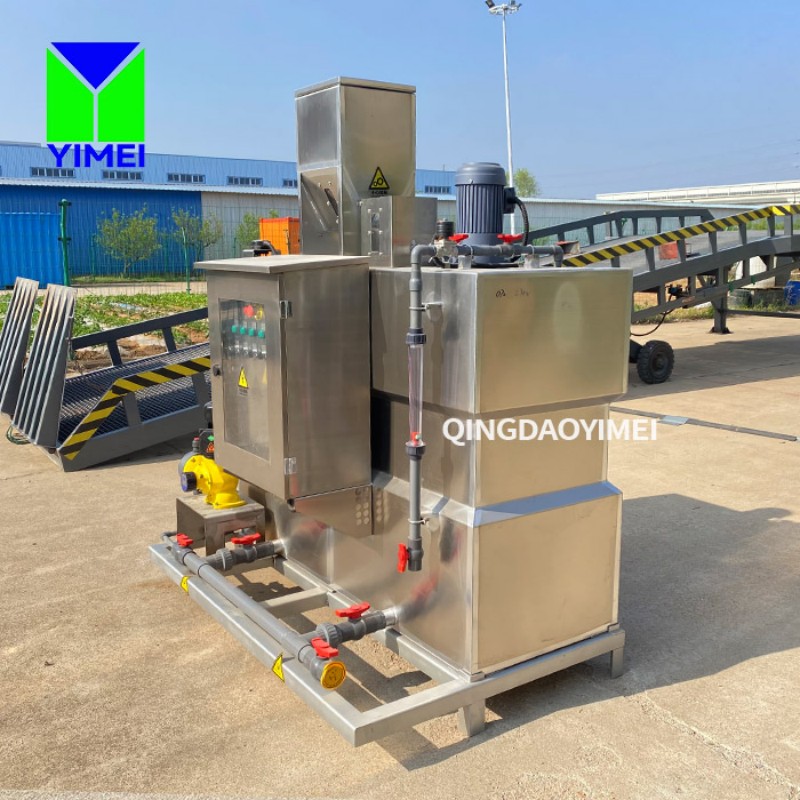

At the core of this Industrial Multi-Chemical Automatic Dosing System is a programmable logic controller (PLC) managed through a user-friendly touchscreen interface. The entire system is pre-assembled on a robust Pump Skid frame, making it a compact, pre-wired, and pre-piped Pump Skid Automatic Dosing System that drastically reduces installation time and costs. This skid-mounted design ensures structural integrity and ease of handling.
Key Operational Advantages for Target Markets
Full Automation & Precision: The system operates continuously with minimal oversight. The PLC automatically calculates and adjusts powder dosage based on real-time water flow signals, ensuring precise preparation concentration and significant chemical savings.
Multi-Chemical Flexibility: Designed as a versatile Multi-Chemical Pump Skid Automatic Dosing System, it can be configured to handle various chemicals simultaneously, making it ideal for complex treatment processes that require coagulants, flocculants, and pH adjusters.
Durability & Reliability: Key components are constructed from corrosion-resistant materials, suitable for harsh industrial environments. Features like heated feeders and agitators prevent blockages, ensuring uninterrupted operation.
Comprehensive Safety & Diagnostics: The system is equipped with high/low-level switches for both powder and solution tanks, an emergency stop button, and a full fault alarm system. All operational statuses and alerts are clearly displayed on the HMI for easy management and rapid troubleshooting.
Wide Application Range
This robust Industrial Pump Skid Automatic Dosing System is indispensable across numerous sectors:
Municipal Wastewater Treatment: For precise flocculant dosing in sedimentation and sludge dewatering processes.
Industrial Process Water & Effluent Treatment: Applicable in industries such as chemical, paper, food & beverage, and textiles
Power Plants & Desalination: For antiscalant and biocide dosing.
FAQ
Q: What is the typical installation and commissioning timeline for this unit?
A: As a pre-engineered and pre-assembled unit, installation is swift. It primarily involves positioning the screen in the channel, making electrical connections, and basic calibration. Commissioning can typically be completed within a few days.
Q: How skilled do the operators need to be?
A: The system is designed for simplicity and full automation. We provide comprehensive operational manuals and training. Basic routine checks can be handled by general plant staff without the need for highly specialized skills.
Q: How do I select the appropriate screen gap (aperture)?
A: The optimal screen gap (from 1mm to 50mm) depends on your specific needs for effluent quality, the volume and size of solids to be captured, and hydraulic capacity. We can provide expert guidance based on your wastewater characteristics.
Q: What are the advantages of the stainless steel model?
A: The Stainless Steel Bar Screen offers maximum resistance to corrosion in aggressive wastewater environments, ensuring longer service life and reduced maintenance costs, especially in coastal or high-humidity regions.
Q: What kind of after-sales support do you offer for international clients?
A: We provide comprehensive remote support via video conferencing, detailed documentation, and a network of partners for on-ground assistance. We also ensure the ready availability of critical spare parts to minimize potential downtime.
